  9. Receptacle, Duplex, 5-15R, 125/250V

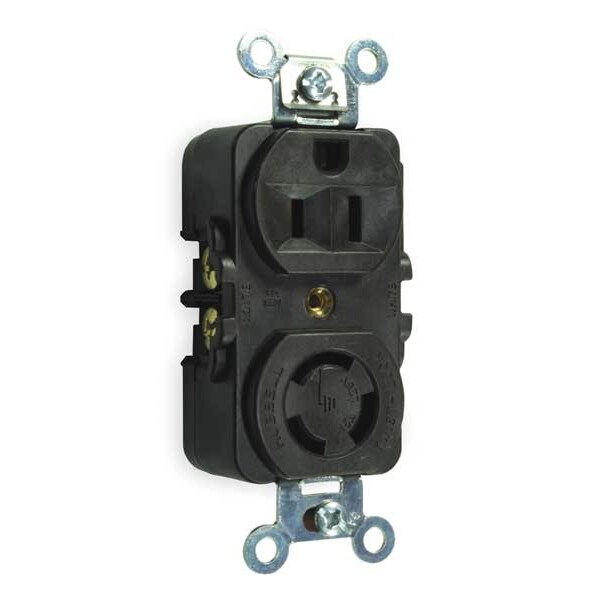

Hubbell Wiring Device-Kellems Receptacle, Duplex, 5-15R, 125/250V HBL7371 - main

Receptacle, Duplex, 5-15R, 125/250V

  • Mfr # HBL7371

  • Zoro # G6405533

product price: $68.65
/ea

Key Features

Type
2 Pole, 3 Wire, Grounding
NEMA Configuration
5-15
Amps
10 A
Voltage
120/240V AC
Wiring Combination
Combination Duplex Receptacle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7371
Zoro #
G6405533
UPC #
783585237152
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
0.88 in
Mount Hole Center-to-Center Height
3.28 in
Width
1.5 in
Height
0.88 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.5 in x 0.88 in
Length
3.28 in

Details

Item
Combination Device
Type
2 Pole, 3 Wire, Grounding
NEMA Configuration
5-15
Amps
10 A
Voltage
120/240V AC
Wiring Combination
Combination Duplex Receptacle
Description/Special Features
Duplex Receptacle
Color
Black
Standards
CSA Certified, UL Listed
Voltage Rating
125/250V AC
Current Rating
15 A
Electrical Connection Type
Locking
Horsepower Rating
1/2 hp
NEMA Receptacle Configuration
5-15R
For Location
Indoor
Includes Mounting Hardware
Yes
Wire Connection Type
Screw Terminals
Device Type
Duplex Outlet
Number of Wires
3
Housing Color
Brown
Housing Material
Reinforced Thermoplastic Polyester
Number of Poles
2
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
V-2
Grounding
Grounded
Phase
Single Phase
Mounting Screw Material
Steel-Zinc Plated
Base Material
RTP
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Style
Finder Groove
Top Material
RTP
Face B
Non NEMA 10A 250V, 15A 125V
Rating
20A, 125V/10A, 250V-15A, 125V
Combo Wiring Method
Side Wired
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Power Contacts Material
.032" (.81) Brass
Mounting Strap Material
.050" (1.3) Plated Steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Brown
Receptacle Grade
Heavy Duty Spec Grade
Terminal Screw Material
#8-32 Brass, Multiple Drive
Horsepower
0.5
Face A
5-15R
Flammability
UL 94 V-2 or better
NEMA No.
5-15R, Non NEMA
Auto Ground Clip Material
Stainless Steel
Dielectric Voltage
Withstands 2,000V minimum
Wiring Style
Two Feeds One Return
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Amperage Rating
15 A
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 UL Listed to UL498 File E2186
Application
Heavy Duty
Wattage
1875 W
Horsepower - Maximum
0.5
Connectivity
Screw Terminals
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 or better Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Item Type
Combination Duplex Receptacles
Material - Mounting Hardware
Screw Mounting
Voltage Rating Description
125 V;250 V
Current / Amperage Rating
15/10 A,15 A

Description

Combination Device, Current Rating 15 A, Device Type Duplex Outlet, Housing Color Brown, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Voltage Rating 125/250V AC, Electrical Connection Type Locking, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Material Reinforced Thermoplastic Polyester, Includes Mounting Hardware Yes, Mount Hole Center-to-Center Height 3.28 in, Standards CSA Certified, UL Listed, Wire Connection Type Screw Terminals
