Shop HUBBELL WIRING DEVICE-KELLEMS

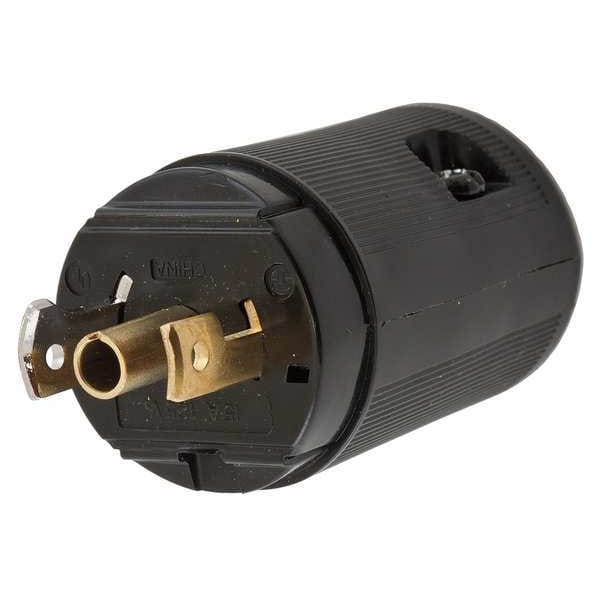

Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL7594V

  • Zoro # G1059983

product price:  $21.59
/ea

Key Features

NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL7594V
Zoro #
G1059983
UPC #
783585237787
Country of Origin
China

Dimensions

Cord Size
0.300 in to 0.430 in
Body Length
1.19 in
Maximum Wire Size
14 AWG
For Maximum Cable Diameter
0.43 in
Outside Diameter
1.188 in
For Minimum Cable Diameter
0.30 in
Minimum Wire Size
18 AWG
Length
1.19 in
Wire Size
#18 AWG to #14 AWG
Height
1.61 in
Dimensions
1.19 in x 1.19 in x 1.61 in
Width
1.19 in
Overall Length
1.19 in
Wire Rope Length
1.19 in

Details

Item
Midget Locking Plug
NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Standards
Federal Specification W-C-596
Resistance Properties
Chemical Resistant, Impact Resistant
Body Material
Nylon
Material
Nylon
IP Rating
IP20
Application
Industrial/Commercial
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Midget Locking
Yes
Housing Material
Nylon
Blade Material
Brass
For Environment
Dry
Market
Commercial, Industrial
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Amperage Rating
15 A
Cord Range
0.300"-0.430"(7.6-10.9)
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
NEMA Configuration
ML2-15
Amps
15 A
UL 94 Flammability Rating
HB

Description

• Fully insulated, abuse resistant nylon housing
• Insulation displacement terminals reduce wiring time
• Insulation displacement terminal
• Totally insulated body adds extra measure of safety
