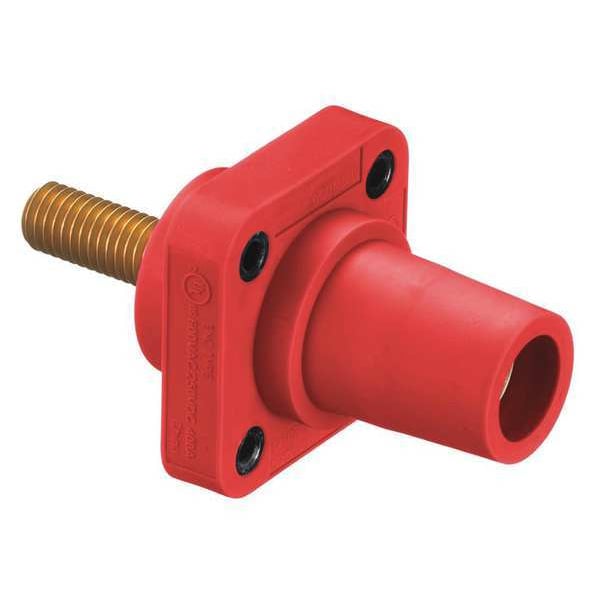

Hubbell Wiring Device-Kellems Receptacle, Female, Red, Taper Nose, Stud HBLFRSCR - main

Receptacle, Female, Red, Taper Nose, Stud

  • Mfr # HBLFRSCR

  • Zoro # G6071511

product price: $48.26
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRSCR
Zoro #
G6071511
UPC #
783585093604
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Length
3.67 in
Overall Width
2.2 in
Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Mounting
Threaded Stud
Single Pole Device Style
Taper Nose
Fits
UL1691
Material
Thermoplastic Elastomer
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Conductor Material
Brass
Color
Red
Amps AC/DC
300/400AC/DC
Amps AC
400 A
Contact Material
Brass
Housing Color
Red
Terminal Connection Type
Threaded Stud
Phase
Single
Gender
Female
Flange Shape
Square
For Location
Indoor
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
Compatible with Series
16
Connection Orientation
Straight
Mounting Style
Threaded Mounting
Housing Material
Thermoplastic Elastomer
Number Of Poles
1-Pole
Current / Amperage Rating
400 A
Connectivity
Stud Type
Material - Mounting Hardware
Threaded Thru-Hole
Voltage Rating Description
600V AC/DC
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Style
Stud Type, Threaded Hole Mounting, Female
Number Of Wires
1-Wire
Application
High Ampacity Connections
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Amperage Rating
400 A
Item Type
Panel Mount Receptacle
Wattage
240000

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Female Receptacle
• 300/400A 600V AC/DC
