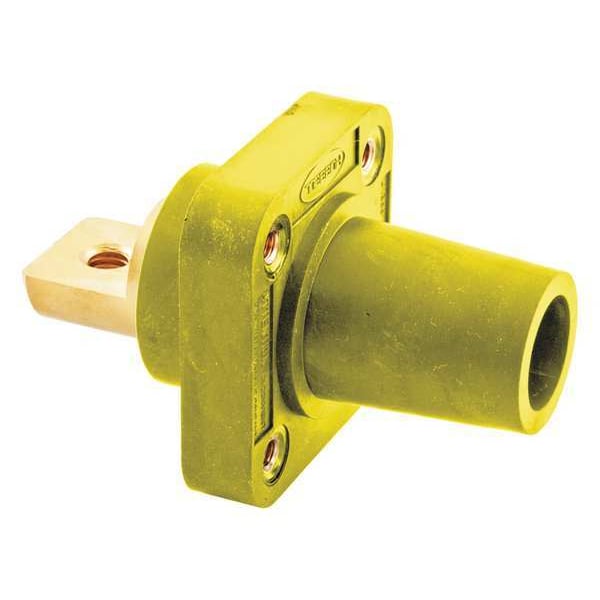

Hubbell Wiring Device-Kellems Receptacle, Female, Ylw, Taper, Double Set HBLFRBY - main

Receptacle, Female, Ylw, Taper, Double Set

  • Mfr # HBLFRBY

  • Zoro # G6120807

product price: $51.15
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRBY
Zoro #
G6120807
UPC #
783585192703
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Maximum Wire Size
4/0 AWG
Overall Length
3.57 in
Overall Width
2.2 in
Minimum Wire Size
4 AWG
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Material
Thermoplastic Elastomer
Fits
UL1691
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Single Pole Device Style
Taper Nose
Mounting
Threaded Hole
Amps AC/DC
300/400AC/DC
Color
Yellow
Cable Range
4 to 4/0
Amps AC
400 A
Mounting Style
Threaded Mounting
Gender
Female
NEMA Enclosure Rating
12, 3R, 4X
Contact Material
Brass
Housing Material
Thermoplastic Elastomer
Includes Mounting Hardware
Yes
Compatible with Series
16
Housing Color
Yellow
For Location
Indoor
Connection Orientation
Straight
End Type
Taper Nose
Phase
Single
Flange Shape
Square
Terminal Connection Type
Bus Bar
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Poles
1-Pole
Current / Amperage Rating
400 A
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Material - Mounting Hardware
Screw Mounting
Connectivity
Screw Terminals
Item Type
Flanged Single
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Style
Bus Bar Mount Female
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Application
High Ampacity Connections
Wattage
240000

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Female Receptacle
• 300/400A 600V AC/DC
