Single Pole Connector, Non-Met Cover, Yllw

Mfr # HBLNCY
Zoro # G7588454

33.59

Key Features

Type

Non-Met Cover

Series

Series 16

Terminal Connection

Single Pin

Voltage Rating

600V AC/250V DC

Color

Yellow

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HBLNCY
Zoro #: G7588454
UPC #: 783585198538
Country of Origin: United States

Dimensions

Overall Length: 2.2 in
Overall Width: 2.03 in
Overall Height: 2.57 in
Display Size: 1 Device
Wire Rope Length: 2.2 in
Length: 2.2 in

Details

Item: Lift Cover
Type: Non-Met Cover
Series: Series 16
Terminal Connection: Single Pin
Voltage Rating: 600V AC/250V DC
Color: Yellow
Fits: UL1691
Standards: cUL, UL
Material: Nylon
For Use With: UL1691
Amps AC: 400 A
Mounting: Weather Protective Cover
Compatible with Series: 16
Resistance Properties: Weather Resistant
Product Type: Lift Cover
NEMA Enclosure Rating: 12, 3R, 4X
Compatible Device Current: 400 A
Item Type: Cover
Amperage Rating: 400 A
Construction: Fabricated
Voltage Rating Description: 600V AC/DC
Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating: 400 A
Material - Mounting Hardware: Mounts to Device
Application: Weatherproofing

Description

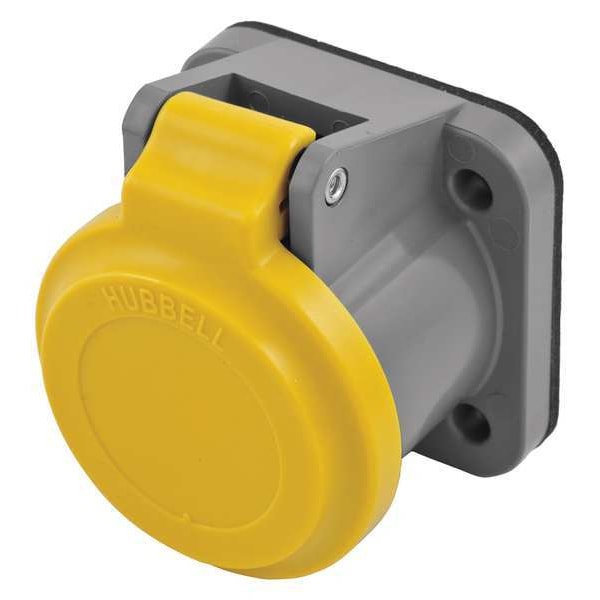

The HUBBELL Single Pole Connector with Non-Metallic Cover is a protective cover for use with Series 16 single pole devices.

Key Features of the HUBBELL Single Pole Connector, Non-Met Cover:

Amperage Rating: Rated for 400 A

Voltage Rating: Suitable for use at 600V AC or 250V DC

Material: Made from nylon

NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements

Weather Resistance: Rated as a weatherproofing cover to protect connections

Compatible Series: For use with Series 16 single pole connectors

Standards Compliance: UL and cUL Listed; meets National Electric Code (NEC), ANSI/NFPA 70; fits UL1691 standard

Mounting Hardware: Mounts directly to device without special tools required
