  9. Receptacle, Male, Red, 150AC/DC, 8-2

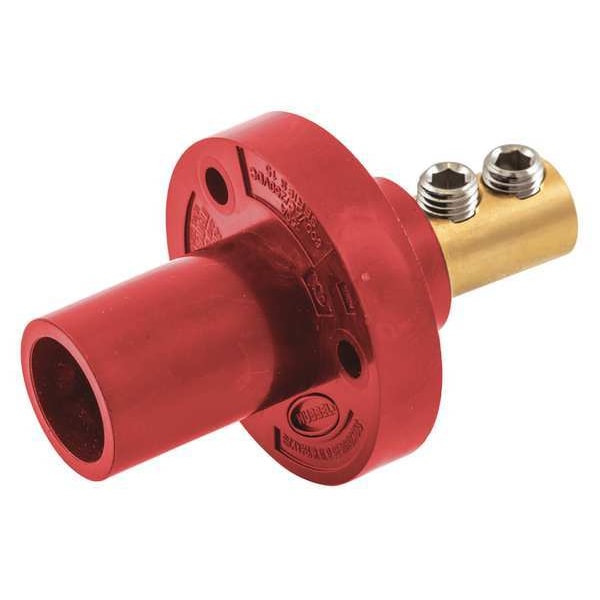

Hubbell Wiring Device-Kellems Receptacle, Male, Red, 150AC/DC, 8-2 HBL15MRR - main

Receptacle, Male, Red, 150AC/DC, 8-2

  • Mfr # HBL15MRR

  • Zoro # G6108611

product price: $36.95
/ea

Key Features

Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15MRR
Zoro #
G6108611
UPC #
783585458144
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Minimum Wire Size
8 AWG
Overall Length
2.9 in
Maximum Wire Size
2 AWG
Overall Width
0.86 in
Display Size
Standard Sized Product
Wire Size
#4 AWG Type SC/PPC Wire

Details

Item
Receptacle
Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Fits
UL1691
Single Pole Device Style
Taper Nose
Color
Red
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Cable Range
8 to 2
Amps AC/DC
150AC/DC
Conductor Material
Brass
Material
Thermoplastic Elastomer
Mounting
Screw Mount
Amps AC
150 A
Contact Material
Brass
Terminal Connection Type
Double Set Screw
Phase
Single
Flange Shape
Round
Mounting Style
Through Hole Mounting
NEMA Enclosure Rating
12, 3R, 4X
Compatible with Series
15
UL 94 Flammability Rating
HB
Gender
Male
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Housing Color
Red
End Type
Taper Nose
For Location
Indoor
Housing Material
Thermoplastic Elastomer
Item Type
Male Inlet
Style
Double Set Screw Male
Wattage
90000
Number Of Poles
1-Pole
Number Of Wires
None
Material - Mounting Hardware
Screw Mounting
Voltage Rating Description
600V AC/DC
Application
Extra Heavy Duty Industrial
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Current / Amperage Rating
150 A
Connectivity
Double Set Screw
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Amperage Rating
150 A

Description

The HUBBELL Receptacle, Male, Series 15 is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This male inlet receptacle includes a double set screw termination and accommodates wire sizes from #8 to #2 AWG. It is rated for up to 150 amps at 600V AC or 250V DC and is constructed with a thermoplastic elastomer housing and brass contacts for reliable connectivity in indoor dry locations unless additional protection is provided.


Key Features of the HUBBELL - Receptacle, Male, Series 15:

  • Amperage/Voltage Rating: Rated for 150 A; supports up to 600V AC or 250V DC operation

  • Cable Range: Accepts cable sizes from #8 to #2 AWG

  • Connection Type: Includes a double set screw termination

  • Material Construction: Housing made from thermoplastic elastomer; contact material is brass

  • NEMA Enclosure Ratings: For use in NEMA Types 12, 3R, and 4X enclosures when installed according to manufacturer instructions

  • Mounting Style: Screw mount with through hole mounting design; includes mounting hardware

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements; fits UL1691 standard

  • Pole Configuration: Single pole (1-pole) device compatible with Series 15 products
