  9. Receptacle, Red, Male, Threaded Stud

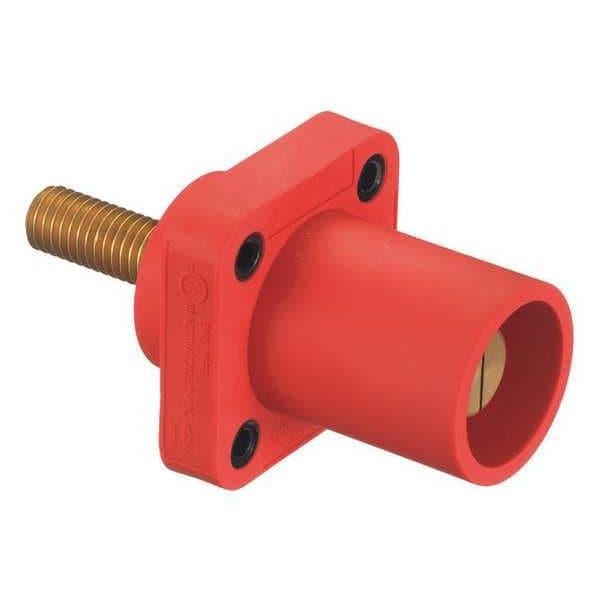

Hubbell Wiring Device-Kellems Receptacle, Red, Male, Threaded Stud HBLMRSCR - main

Receptacle, Red, Male, Threaded Stud

  • Mfr # HBLMRSCR

  • Zoro # G6220891

product price: $48.26
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRSCR
Zoro #
G6220891
UPC #
783585093529
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Width
2.2 in
Maximum Wire Size
4/0 AWG
Overall Length
3.71 in
Minimum Wire Size
4 AWG
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Material
Thermoplastic Elastomer
Mounting
Threaded Stud
Amps AC/DC
300/400AC/DC
Fits
UL1691
Conductor Material
Brass
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Single Pole Device Style
Taper Nose
Color
Red
Amps AC
400 A
Phase
Single
For Location
Indoor
Compatible with Series
16
Mounting Style
Threaded Mounting
End Type
Taper Nose
Connection Orientation
Straight
Housing Material
Thermoplastic Elastomer
Housing Color
Red
Flange Shape
Square
Includes Mounting Hardware
Yes
Gender
Male
Contact Material
Brass
Terminal Connection Type
Threaded Stud
NEMA Enclosure Rating
12, 3R, 4X
Connectivity
Screw Terminals
Item Type
Flanged Single
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Voltage Rating Description
600V AC/DC
Number Of Poles
1-Pole
Style
Stud Type, Threaded Hole Mounting, Male
Application
High Ampacity Connections
Amperage Rating
400 A
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Wattage
240000
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Current / Amperage Rating
400 A

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Male Receptacle
• 300/400A 600V AC/DC
