Shop HUBBELL WIRING DEVICE-KELLEMS

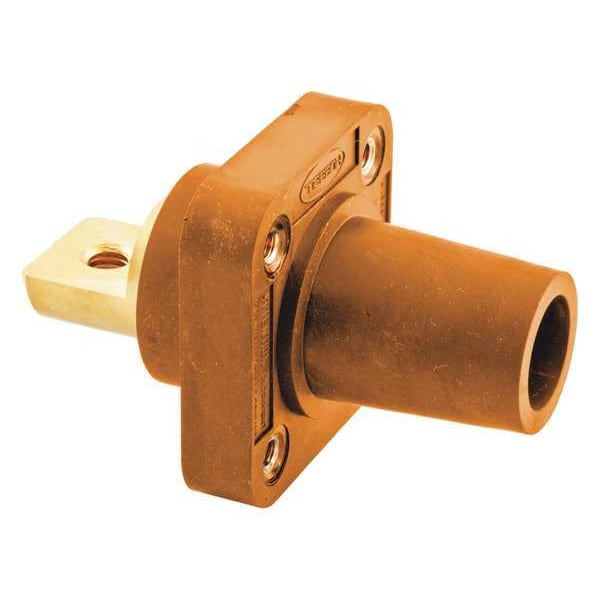

Receptacle, Taper Nose, Org, Female, Ser 16

  • Mfr # HBLFRBO

  • Zoro # G6103194

product price:
$
50.35
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLFRBO
Zoro #
G6103194
UPC #
783585192697
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Overall Length
4.1 in
Overall Width
2.2 in
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG
Wire Rope Length
4.1 in
Length
4.1 in

Details

Item
Single Pole Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
300/400AC/DC
Material
Thermoplastic Elastomer
Fits
UL1691
Mounting
Threaded Hole
Single Pole Device Style
Taper Nose
Color
Orange
Cable Range
4 to 4/0
Conductor Material
Brass
Amps AC
400 A
Phase
Single
Terminal Connection Type
One-Hole Bus Bar
Flange Shape
Square
For Location
Indoor
Mounting Style
Threaded Mounting
Gender
Female
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
Includes Mounting Hardware
Yes
Contact Material
Brass
Connection Orientation
Straight
Compatible with Series
16
Housing Color
Orange
Housing Material
Thermoplastic Elastomer
Wattage
240000
Current / Amperage Rating
400 A
Application
High Ampacity Connections
Connectivity
Screw Terminals
Amperage Rating
400 A
Material - Mounting Hardware
Screw Mounting
Number Of Poles
1-Pole
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Item Type
Flanged Single
Style
Bus Bar Mount Female
Voltage Rating Description
600V AC/DC
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Female Receptacle
• 300/400A 600V AC/DC
