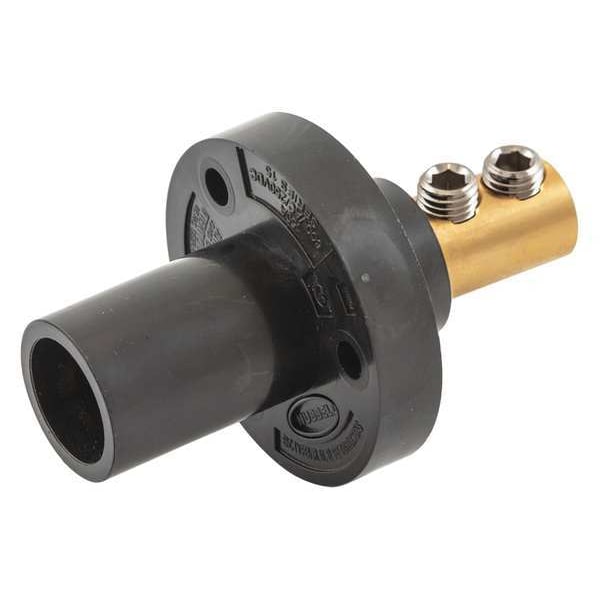

Hubbell Wiring Device-Kellems Receptacle, Single Pin, Blk, Male, 8-2 HBL15MRBK - main

Receptacle, Single Pin, Blk, Male, 8-2

  • Mfr # HBL15MRBK

  • Zoro # G6154802

product price: $35.59
/ea

Key Features

Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15MRBK
Zoro #
G6154802
UPC #
783585458120
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Overall Width
0.86 in
Overall Length
2.9 in
Minimum Wire Size
8 AWG
Maximum Wire Size
2 AWG
Wire Size
#4 AWG Type SC/PPC Wire
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Fits
UL1691
Cable Range
8 to 2
Single Pole Device Style
Taper Nose
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Material
Thermoplastic Elastomer
Color
Black
Conductor Material
Brass
Mounting
Screw Mount
Amps AC/DC
150AC/DC
Amps AC
150 A
Housing Color
Black
For Location
Indoor
Receptacle Gender
For Female Connectors
Contact Material
Brass
Phase
Single
Terminal Connection Type
Double Set Screw
Mounting Style
Through Hole Mounting
Connection Orientation
Straight
NEMA Enclosure Rating
12, 3R, 4X
Compatible with Series
15
Flange Shape
Round
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic Elastomer
End Type
Taper Nose
Gender
Male
Voltage Rating Description
600V AC/DC
Number Of Poles
1-Pole
Wattage
90000
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Current / Amperage Rating
150 A
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Application
Extra Heavy Duty Industrial
Style
Double Set Screw Male
Amperage Rating
150 A
Item Type
Male Inlet
Number Of Wires
None
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Connectivity
Double Set Screw

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Double Set Screw Termination
• 150 Amp Series
• Black
