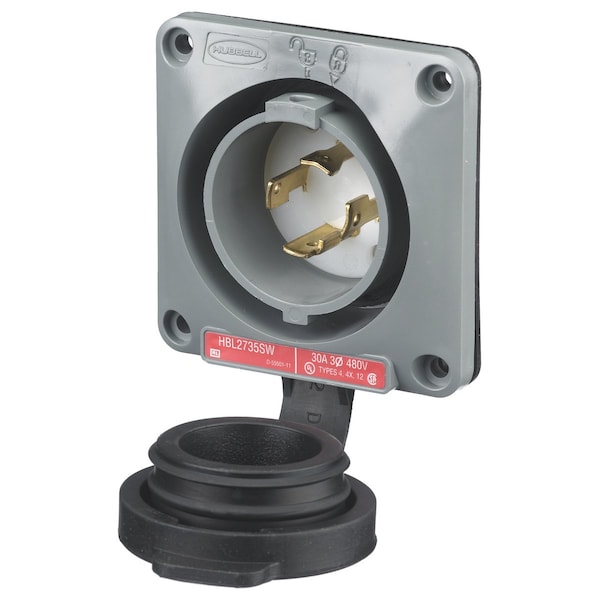

Watertight Flanged Locking Inlet, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

Mfr # HBL2735SW
Zoro # G800702118

169.99

Free Shipping & Returns

Key Features

NEMA Receptacle Configuration

L16-30P

Current Rating

30 A

Voltage Rating

480V AC

Phase

Three

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HBL2735SW
Zoro #: G800702118
UPC #: 783585231969
Country of Origin: United States

Dimensions

Cord Size: 16 to 8 AWG
Height: 2.44 in
Length: 3.75 in
Width: 3.75 in
Wire Size: #16 AWG to #8 AWG
Dimensions: 3.75 in x 3.75 in x 2.44 in

Details

Item: Watertight Locking Plug
NEMA Receptacle Configuration: L16-30P
Current Rating: 30 A
Voltage Rating: 480V AC
Phase: Three
Number of Poles: 3
Number of Wires: 4
Wire Connection Type: Screw Terminals
Grounding: Grounded
Housing Color: Gray
Mount Type: Flush
Cover Type: Closure Cap
Flange Type: Flanged
Standards: 4X And Type 12, CSA Certified To Type 4, UL Listed
Resistance Properties: Watertight
Material: Thermoplastic
Housing Material: Gray Valox
Screw Material: Stainless Steel
Dielectric Strength: 2000V
IP Rating: IP66
Weight: 0.7 lb
Contact Material: Brass
Retainer Material: Clear Polycarbonate
Flammability: UL 94 V0
Application: Extra Heavy Duty Industrial
Material - Mounting Hardware: Screw Mounting
OEM Brand Name: Hubbell Wiring Device-Kellems
Insulation: Insulated Body
NEMA Enclosure Rating: 4X, 12, 4
Shrouded: Yes

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inlet, 30A 3-Phase Delta 480V AC, 3-Pole 4-WireGrounding, L16-30P, Screw Terminal, Gray
