Shop LEVITON

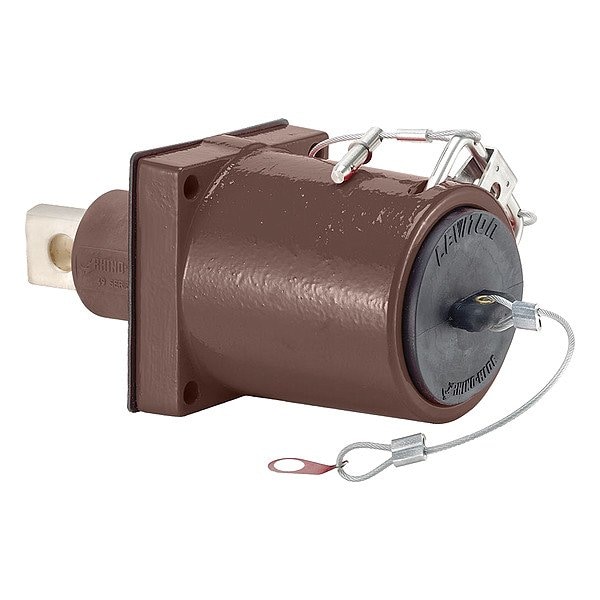

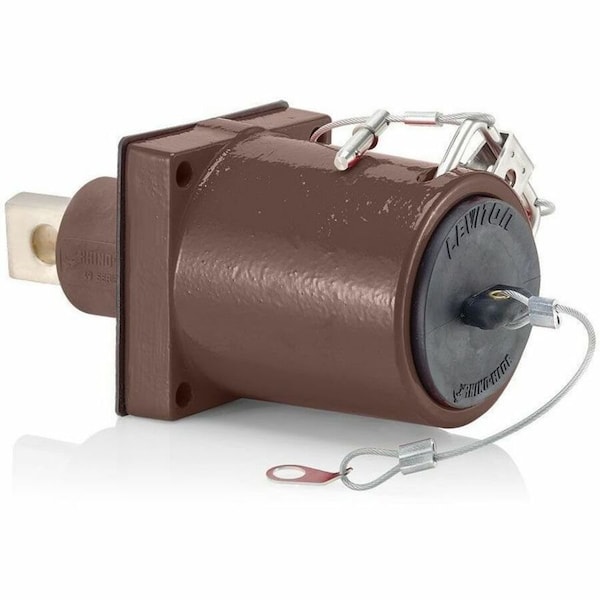

Male Receptacle

  • Mfr # 49MR1-XH

  • Zoro # G515554903

product price:  $1,070.99
/ea
Free Shipping & Returns

Key Features

Current Rating
1,135 A
Voltage Rating
1000V AC, 1000V DC
Standards
UL Recognized Component
Connection Orientation
Straight
End Type
45 Degrees Clevis Pin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
49MR1-XH
Zoro #
G515554903
UPC #
078477386330
Country of Origin
Mexico

Dimensions

Overall Width
4.49 in
Flange Height
4.49 in
Overall Length
8.84 in
Maximum Wire Size
777 kcmil
Minimum Wire Size
313 kcmil
Wire Rope Length
8.84 in

Details

Item
Single Pole Receptacle
Current Rating
1,135 A
Voltage Rating
1000V AC, 1000V DC
Standards
UL Recognized Component
Connection Orientation
Straight
End Type
45 Degrees Clevis Pin
Flange Shape
Square
Housing Material
Thermoplastic Elastomer
Housing Color
Brown
Terminal Connection Type
One-Hole Bus Bar
Gender
Male
NEMA Enclosure Rating
3R
Phase
Single
Contact Material
Silver-Plated Copper
Series
49

Description

Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Male, Housing Color Brown, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Phase Single, Voltage Rating 1000V AC, 1000V DC, Contact Material Silver-Plated Copper, End Type 45 Degrees Clevis Pin, Flange Diameter Not Applicable, Flange Height 4.49 in, Flange Shape Square, NEMA Enclosure Rating 3R, Standards UL Recognized Component
