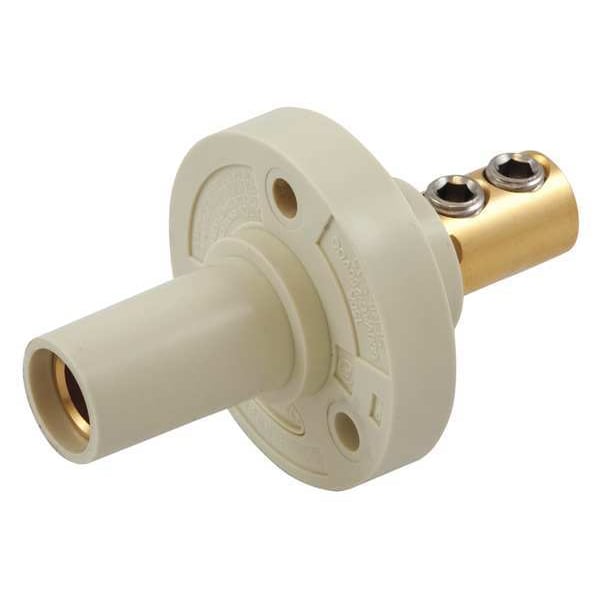

Hubbell Wiring Device-Kellems Receptacle, White, Female, Double Set HBL15FRW - main

Receptacle, White, Female, Double Set

  • Mfr # HBL15FRW

  • Zoro # G6186083

product price: $35.45
/ea

Key Features

Type
Receptacle Stud Type
Series
15
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15FRW
Zoro #
G6186083
UPC #
783585458182
Country of Origin
United States

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Overall Length
2.95 in
Overall Width
0.86 in
Wire Size
#4 AWG Type SC/PPC Wire
Display Size
Standard Sized Product

Description

The HUBBELL Receptacle, White, Female, Double Set is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This receptacle features a double set screw termination and is compatible with Series 15 devices. It is rated for up to 150 amps and supports both AC and DC currents at voltages up to 600V AC or 250V DC. The unit has a straight connection orientation and utilizes brass contacts within a thermoplastic elastomer housing.


Key Features of the HUBBELL Receptacle, White, Female, Double Set:

  • Amperage/Voltage Rating: Rated for 150 A; supports up to 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from #8 AWG to #2 AWG

  • Connection Type: Double set screw terminal connection

  • Contact Material: Brass conductor and contact material

  • Housing Material: Thermoplastic elastomer construction; intended for indoor use in dry conditions

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements

  • Mounting Style: Screw mount with through hole mounting design; includes mounting hardware

  • Standards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards including UL1691 enclosure types

  • Pole/Phase Configuration: Single pole device; female configuration with taper nose style end type
