Plugs and Receptacles
- Mfr # 16R26-1UO
- Zoro # G222588109
product price:Â
$
32.85
/ea
Key Features
Flange Height
2.28 in
Threaded Stud Termination Length
1.125 in
For Location
Outdoor
Terminal Connection Type
Threaded Stud
Current Rating
400 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R26-1UO
- Zoro #
- G222588109
- UPC #
- 78477718117
- Country of Origin
- Mexico
- For Location
- Outdoor
- Terminal Connection Type
- Threaded Stud
- Current Rating
- 400 A
- Minimum Operating Temperature
- -40 Degrees F
- Connection Orientation
- Straight
- Maximum Operating Temperature
- 185 Degrees F
- Series
- 16
- Housing Color
- Orange
- Standards
- CSA, UL
- Housing Material
- Nylon
- Mounting Style
- Threaded Mounting
- NEMA Enclosure Rating
- 3R
- Gender
- Female
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Voltage Rating
- 600V AC, 600V DC
- End Type
- Taper Nose
- Flange Shape
- Square
- Item
- Single Pole Receptacle
- Contact Material
- Brass
Dimensions
- Flange Height
- 2.28 in
- Threaded Stud Termination Length
- 1.125 in
- Minimum Wire Size
- 2 AWG
- Maximum Wire Size
- 4/0 AWG
- Flange Width
- 2.28 in
- Overall Length
- 2.57 in
- Stud Thread Size
- 5/16"-18
- Overall Width
- 2.28 in
- Wire Rope Length
- 2.57 in
- Length
- 2.57 in
Description

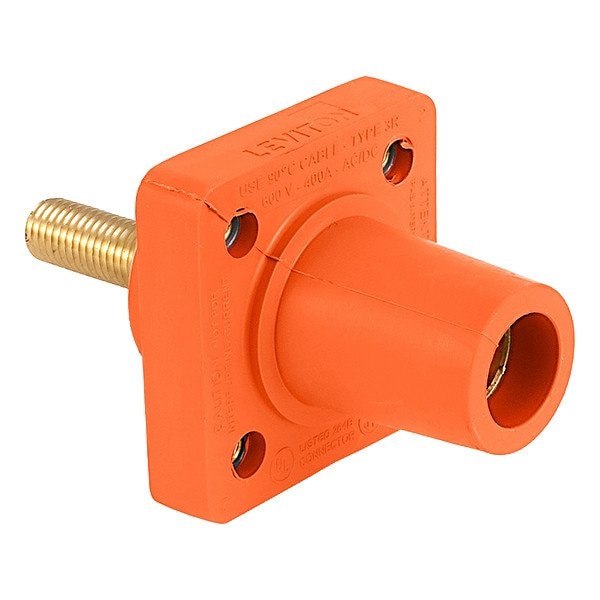

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Orange, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
