  6. Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 347V AC, Terminal Screws, Brown

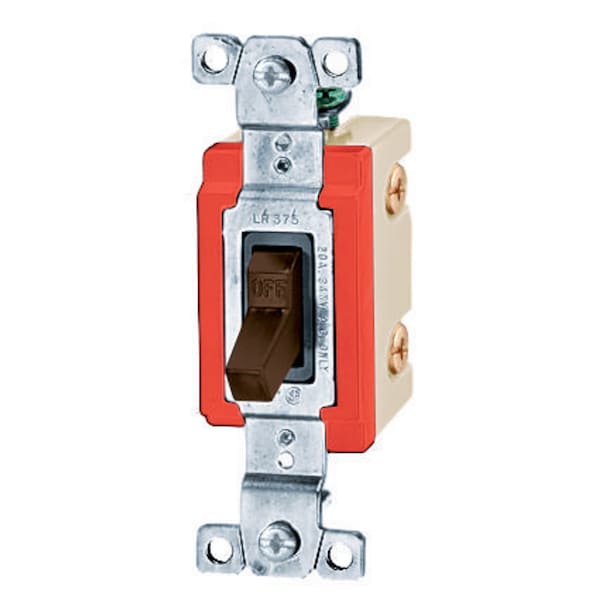

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 347V AC, Terminal Screws, Brown HBL18221CN - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 347V AC, Terminal Screws, Brown

  • Mfr # HBL18221CN

  • Zoro # G500702098

product price:  $30.85
/ea

Key Features

Switch Type
Single Pole
Color
Brown
Width
1.3 in
Style
Single Pole
Voltage
347V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL18221CN
Zoro #
G500702098
UPC #
783585924755
Country of Origin
China

Dimensions

Width
1.3 in
Height
1.86 in
Length
4.06 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.3 in x 1.86 in

Details

Switch Type
Single Pole
Color
Brown
Style
Single Pole
Voltage
347V AC
Type
Toggle
Amperage
20 A
Number Of Poles
Single Pole
Connectivity
Back and Side Wired
Application
Back and Side Wired
Voltage Rating
347 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temp. Rise
30°C maximum at rated current
Carton Quantity
10
Series
Extra Heavy Duty
Current Rating
20 A
Switch Grade
Industrial
Switch Handle Positions
2
Listing and Certifications
CSA Certified
Wiring Style
Back and Side Wired
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Toggle Color
Brown
Product Type
Toggle-switches
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Temperature Rise
30°C maximum at rated current
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Continuous Current
20A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Amperage Rating
20 A
Voltage Rating Description
347 VAC

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A347V AC, Terminal Screws, Brown
