  6. Spec Grade, Pilot Light Decorator Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN

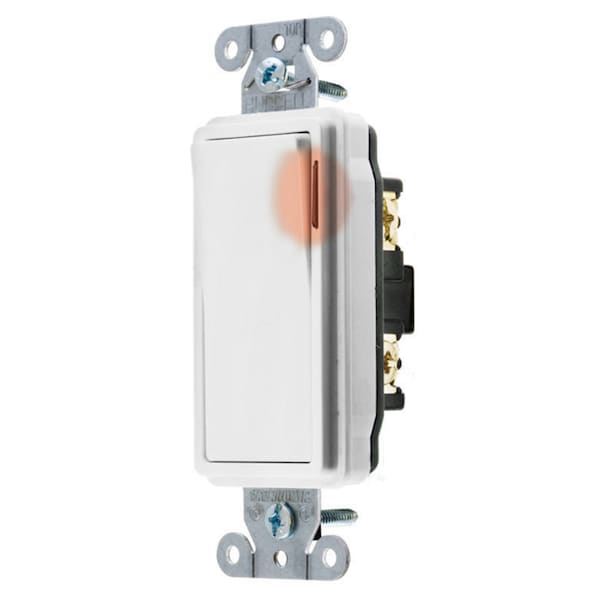

Hubbell Wiring Device-Kellems Spec Grade, Pilot Light Decorator Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN DS120PLW - main

Spec Grade, Pilot Light Decorator Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN

  • Mfr # DS120PLW

  • Zoro # G400701306

product price:  $33.93
/ea

Key Features

Color
White
Type
Rocker/Decorator
Height
1.54 in
Width
1.43 in
Length
4.28 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DS120PLW
Zoro #
G400701306
UPC #
783585187877
Country of Origin
China

Dimensions

Height
1.54 in
Width
1.43 in
Length
4.28 in
Dimensions
4.28 in x 1.43 in x 1.54 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Single Pole Style Line Illuminated Decorator Switch
Color
White
Type
Rocker/Decorator
Style
Single Pole
Material
Thermoplastic
Ground Screw
Brass (Green)
Current / Amperage Rating
20 A
Temperature Rise
30°C maximum at rated current
Overload
Minimum 4.8 times rated current for 100 cycles
Voltage Rating
120-277 VAC
Indicator
Light On with Load On
Contacts
Silver Alloy
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temp. Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Current Rating
20 A
Mounting Bridge
Nickel Plated Steel with Auto Ground Staple
Amperage
20 A
Rocker Material
Thermoplastic
Item Type
Single Pole Style Line Illuminated Decorator Switch
Indicator(s) Type
Red LED
Rocker Color
White
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Industry Standard(s)
UL Listed
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Screws
Brass
Series
Pilot Light
Action
SPDT
Connectivity
Back and Side Wired
Amperage Rating
20 A
Flammability
UL 94V-2
Number Of Poles
Single Pole
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Carton Quantity
10
Max. Continuous Current
20A
Temperature Rise - Max.
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, SpecGrade, Pilot Light Decorator Switches, General Purpose AC, Single Pole,20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, White
