  6. Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black

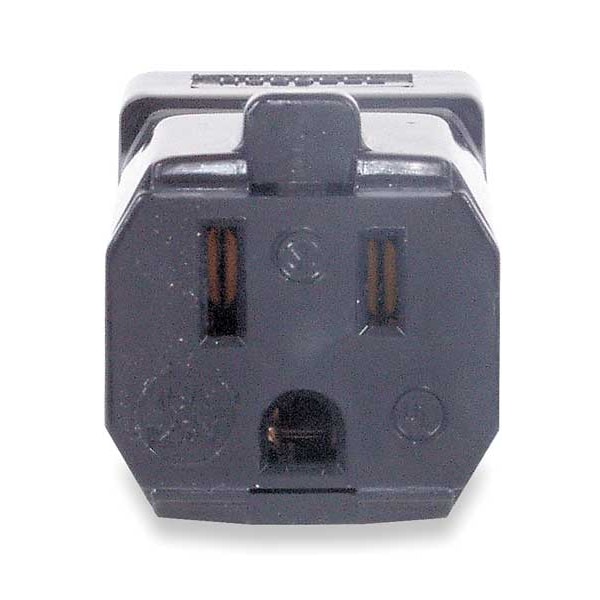

Hubbell Wiring Device-Kellems Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black HBL5969VBLK - main

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black

  • Mfr # HBL5969VBLK

  • Zoro # G2397656

product price:  $26.59
/ea

Key Features

NEMA Receptacle Configuration
5-15R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5969VBLK
Zoro #
G2397656
UPC #
783585013275
Country of Origin
China

Dimensions

Cord Size
0.220 in to 0.660 in
Overall Length
2.68 in
For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Minimum Wire Size
18 AWG
Maximum Wire Size
12 AWG
Dimensions
2.68 in x 1.32 in x 2.68 in
Length
2.68 in
Display Size
Standard
Height
2.68 in
Wire Size
#18 AWG to #12 AWG
Width
1.32 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
Power Indicator
No
HP
1/2 hp
Antimicrobial
No
Corrosion Resistant
No
Special Features
Moisture, Dust, and Weather Resistant
Material
Nylon
Voltage
125VAC
Grade
Commercial
For Location
Indoor
Market
Commercial, Industrial
Polarized
Yes
Horsepower Rating
1/2 hp
Key Resistance Properties
Dust Ignition Proof / HUBBELL, Moisture Resistant / HUBBELL, Weather Resistant / HUBBELL
Power Indicating Light
No
Contact Material
Brass
For Environment
Dry
Housing Material
Thermoplastic Elastomer
Dielectric Strength
Withstands 2,000V minimum.
Weight
0.15 lb
NEMA Configuration
5-15
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Grade - Plugs and Receptacles
Commercial
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Material - Mounting Hardware
Cord Mounted
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Insulation
Insulated Body
Series
Valise
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Application
Industrial/Commercial
Horsepower - Maximum
0.5
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Conductor Range
#14 AWG to #12 AWG
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Standard
Cord Range
0.220"-.660" (5.6-16.8)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

• Hinged one piece body design for easy assembly
• Powerful, offsetting cord grips clamp on individual conductors
• Assembly screws are captive and will not fall out while wiring
