Shop HUBBELL WIRING DEVICE-KELLEMS

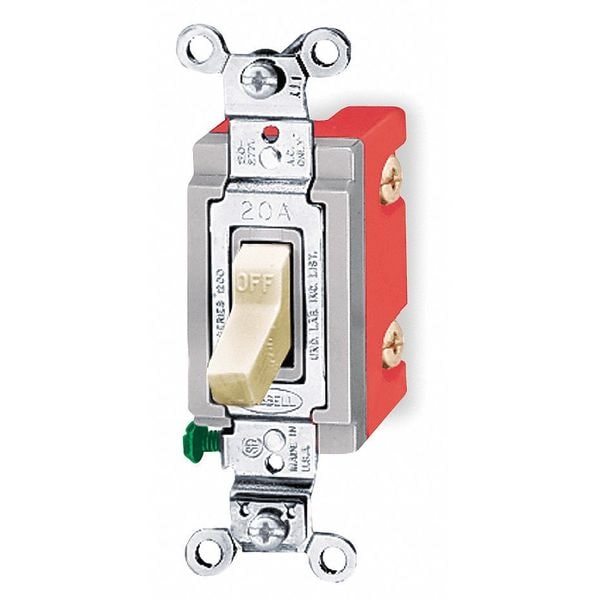

Wall Toggle Switch, Single Pole, 20A 120/277V AC, Back and Side Wired

  • Mfr # HBL1221I

  • Zoro # G1362417

product price:
$
27.95
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1221I
Zoro #
G1362417
UPC #
783585431383
Country of Origin
China

Dimensions

Overall Height
1.9 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Width
1.3 in
Width
1.31 in
Length
4.06 in
Height
1.87 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.87 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back/Side
Application Environment
Industrial
Standards
UL Listed
Rated HP
1
Antimicrobial
No
Voltage
120/277V AC
Switch Material
Nylon
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Number of Switches
1
Minimum Operating Temperature
-40 Degrees F
Current Rating
20 A
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Wire Connection Type
Screw Terminals
Voltage Rating
120/277V AC
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Type
Toggle
Style
Single Pole
Wiring Style
Back and Side Wired
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Max. Working Voltage
277V AC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Switch Handle Positions
2
Switch Grade
Industrial
Flammability
UL 94V-2
Temperature Rise
30°C maximum at rated current
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Amperage
20A
Max. Continuous Current
20A
Toggle Color
Ivory
Product Type
Toggle-switches
Overload
Minimum 4.8 times rated current for 100 cycles
Industry Standard(s)
UL Listed
Series
Extra Heavy Duty
Temperature Rise - Max.
30°C maximum at rated current
Application
Back and Side Wired
Voltage Rating Description
120-277 VAC
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
20 A
Number Of Poles
Single Pole
Connectivity
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Illuminated
No
Nightlight
No
Grounding
Grounded

Description

Wall Switch, Color Ivory, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
