Shop HUBBELL WIRING DEVICE-KELLEMS

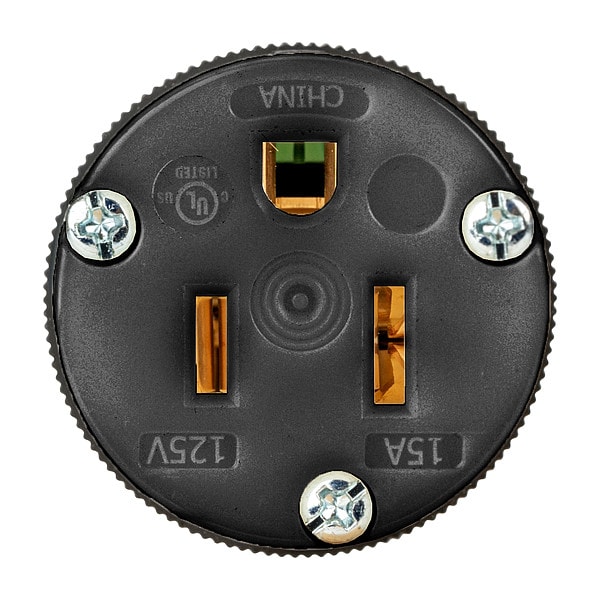

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Wire Leads, Black

  • Mfr # HBL5269CBKST

  • Zoro # G313370477

product price:  $24.45
/ea

Key Features

NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL5269CBKST
Zoro #
G313370477
UPC #
783585965352
Country of Origin
China

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Length
3.28 in
Wire Rope Length
3.28 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Wire Leads
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap or Cover
IP Rating
IP20
Standards
CSA C22.2, Fed. Spec. W-C596G
Resistance Properties
Non-Conductive Housing
Grade
General Use
Maximum Operating Temperature
167 deg F
Minimum Operating Temperature
-40 Degrees F
For Environment
Industrial
Contact Material
Copper
Housing Material
Nylon
Market
Commercial, Industrial
UL 94 Flammability Rating
V-2
For Location
Indoor
Horsepower Rating
1/2 hp
Polarized
Yes
Power Indicating Light
No

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Non-Conductive Housing, Voltage Rating 125V AC, Wire Connection Type Wire Leads, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade General Use, Grounding Grounded, Hazardous Location Specification Not Applicable
