  6. Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Clear

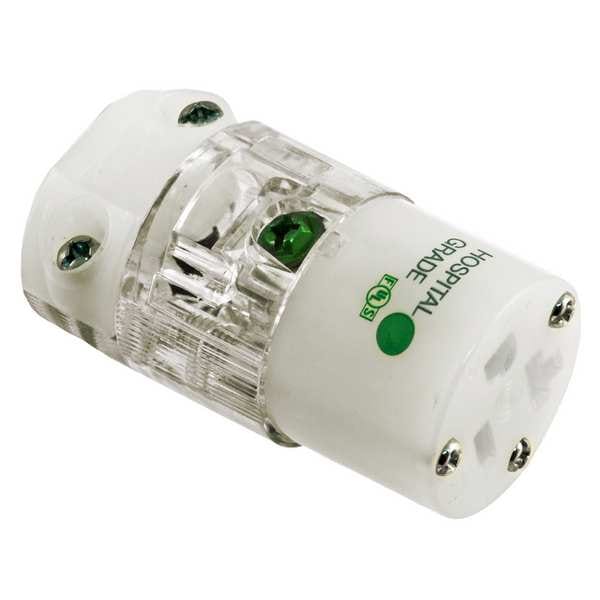

Hubbell Wiring Device-Kellems Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Clear HBL8319CT - main

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Clear

  • Mfr # HBL8319CT

  • Zoro # G3430296

product price:  $52.29
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8319CT
Zoro #
G3430296
UPC #
783585180557
Country of Origin
United States

Dimensions

Cord Size
0.230 in to 0.720 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
For Maximum Cable Diameter
0.72 in
Overall Length
2.78 in
For Minimum Cable Diameter
0.23 in
Display Size
Standard
Width
1.53 in
Height
1.53 in
Wire Size
#18 AWG to #10 AWG
Length
2.78 in
Dimensions
2.78 in x 1.53 in x 1.53 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Clear
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
Corrosion Resistant
No
Voltage
125VAC
HP
1 hp
Special Features
Moisture, Dust, and Weather Resistant
Antimicrobial
No
Power Indicator
No
Grade
Hospital Grade
Material
Nylon
Polarized
Yes
Power Indicating Light
No
Contact Material
Copper
For Location
Indoor
Housing Material
Thermoplastic Elastomer
Horsepower Rating
1 hp
For Environment
Dry
Weight
0.15 lb
Dielectric Strength
Withstands 2,000V AC minimum
Grade - Plugs and Receptacles
Hospital
NEMA Plug Configuration - Plugs and Receptacles
5-20R
NEMA Configuration
5-20
Cord Range
0.230"-0.720" (5.8-18.3)
Style
Insulgrip
Nema Rating
5-20R
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 UL Listed to UL498 File No. E2186
Horsepower - Maximum
1
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2000V AC minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-10 AWG Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Insulation
Insulated Body
Series
Hospital Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Clear, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 1 hp
