Shop HUBBELL WIRING DEVICE-KELLEMS

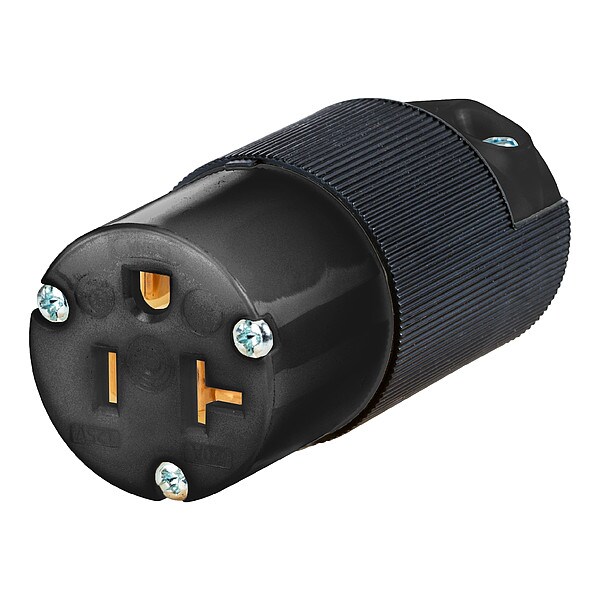

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Spring Clamp Terminals, Black

  • Mfr # HBL5369CBKST

  • Zoro # G013370395

product price:
$
30.89
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL5369CBKST
Zoro #
G013370395
UPC #
783585965413
Country of Origin
China
Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap or Cover
IP Rating
IP20
Standards
CSA C22.2, Fed. Spec. W-C596G
Resistance Properties
Non-Conductive Housing
Contact Material
Copper
Maximum Operating Temperature
167 Degrees F
Grade
General Use
For Environment
Industrial
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
For Location
Indoor
Housing Material
Nylon
Horsepower Rating
1 hp
Market
Commercial, Industrial
Polarized
Yes
Power Indicating Light
No

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Non-Conductive Housing, Voltage Rating 125V AC, Wire Connection Type Wire Leads, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade General Use, Grounding Grounded, Hazardous Location Specification Not Applicable
