  11. Straight Blade Connector, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Screw Terminals, White

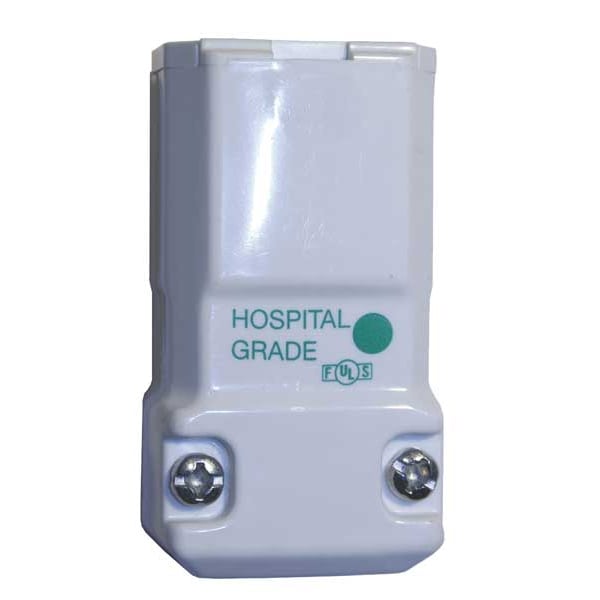

Hubbell Wiring Device-Kellems Straight Blade Connector, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Screw Terminals, White HBL8469V - main

Straight Blade Connector, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Screw Terminals, White

  • Mfr # HBL8469V

  • Zoro # G3032504

product price: $38.65
/ea

Key Features

NEMA Receptacle Configuration
6-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8469V
Zoro #
G3032504
UPC #
783585019406
Country of Origin
United States

Dimensions

Cord Size
0.300 in to 0.660 in
For Minimum Cable Diameter
0.30 in
Maximum Wire Size
12 AWG
Minimum Wire Size
18 AWG
For Maximum Cable Diameter
0.66 in
Overall Length
2.63 in
Dimensions
2.63 in x 1.25 in x 1.13 in
Width
1.25 in
Length
2.63 in
Height
1.13 in
Display Size
Standard
Wire Size
#18 AWG to #12 AWG

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
White
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
Corrosion Resistant
No
Material
Nylon
Voltage
250VAC
Special Features
Moisture, Dust, and Weather Resistant
Grade
Hospital Grade
Antimicrobial
No
HP
2 hp
Power Indicator
No
Power Indicating Light
No
Horsepower Rating
2 hp
For Location
Indoor
For Environment
Dry
Contact Material
Brass
Polarized
Yes
Housing Material
Thermoplastic Elastomer
Dielectric Strength
Withstands 2,000V AC minimum
Weight
0.15 lb
NEMA Plug Configuration - Plugs and Receptacles
6-20R
Grade - Plugs and Receptacles
Hospital
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Horsepower - Maximum
2
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2000V AC minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#12 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Hospital Grade
Industry Standard(s)
CSA Certified to C22.2 No 42 File 280C Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E1706
OEM Brand Name
Hubbell Wiring Device-Kellems
Nema Rating
6-20R
Series
Hospital Grade
Conductor Range
#18AWG to #12AWG
Insulation
Insulated Body
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Valise
Cord Range
0.300"-0.660" (7.6-16.8)
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Cord Mounted

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color White, NEMA Receptacle Configuration 6-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.3 in, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 2 hp
