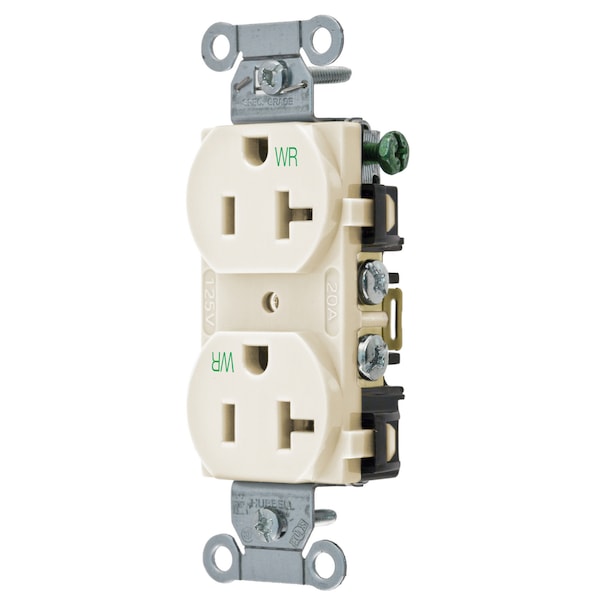

Hubbell Wiring Device-Kellems Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, Single Pack BR20LAWR - main

Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, Single Pack

  • Mfr # BR20LAWR

  • Zoro # G900702537

product price:  $7.99
/ea

Key Features

Voltage
125V
Material
Nylon
Phase
Single Phase
Type
2-Pole 3-Wire, Grounding
Color
Lightalmond
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BR20LAWR
Zoro #
G900702537
UPC #
783585144627
Country of Origin
China

Dimensions

Width
1.06 in
Height
3.28 in
Length
1.32 in
Dimensions
1.32 in x 1.06 in x 3.28 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Voltage
125V
Material
Nylon
Phase
Single Phase
Type
2-Pole 3-Wire, Grounding
Color
Lightalmond
Application
Commercial Specification Grade
NEMA No.
5-20R
Horsepower
1
Wiring Method
Back and Side Wired
Product Type
Flush-receptacles
Auto Ground Clip Material
Stainless Steel
Power Contacts Material
.030" (.8) Brass
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Style
Duplex
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Device Color
Light Almond
Top Material
Nylon
Amperage
20A
Face Shape
Traditional
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Rating
20A, 125V
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Mounting Screw Material
Steel-Zinc Plated
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Standard
NEMA
Mounting Strap Material
.040" (1) Steel (Galvanized)
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Flammability
UL 94 V-2
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Series
Commercial Specification Grade
Voltage Rating Description
125 V
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Style
Smooth Face
Nema Rating
5-20R
Current Rating
20 A
Wattage
2500 W
Item Type
Traditional Duplex
Current / Amperage Rating
20 A
Environmental Conditions
Weather Resistant
Connectivity
Back and Side Wired
Horsepower - Maximum
1
Number Of Wires
3-Wire
Amperage Rating
20 A
Number Of Poles
2-Pole
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-WireGrounding, 20A 125V, 5- 20R, Light Almond, Single Pack
