  11. Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

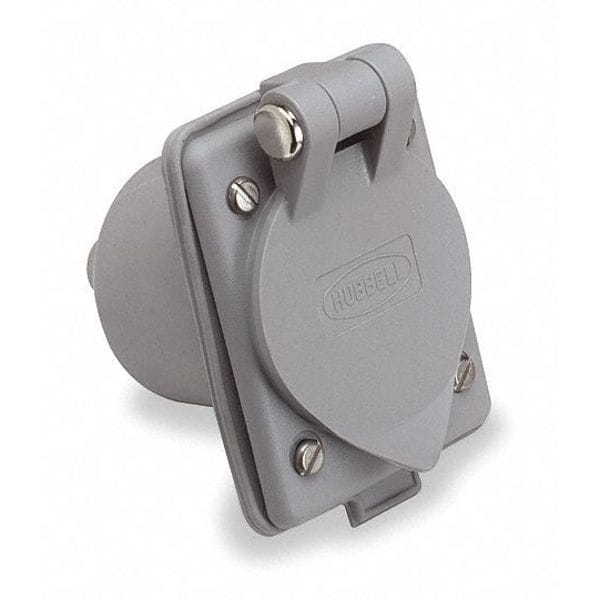

Hubbell Wiring Device-Kellems Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL61CM64 - main

Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL61CM64

  • Zoro # G3389285

product price: $61.89
/ea

Key Features

Receptacle Type
Single
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL61CM64
Zoro #
G3389285
UPC #
783585808659
Country of Origin
United States

Dimensions

Width
1.32 in
Height
1.47 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
1.47 in x 1.32 in x 1.47 in
Length
1.47 in

Details

Item
Straight Blade Inlet
Receptacle Type
Single
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186
Resistance Properties
Weather Resistant
Flange Type
Flanged
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15P
Sub-Category
Inlets
HP
1/2 hp
Application Environment
Industrial
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Inlet
Mounting Type - Plugs and Receptacles
Panel
Surge Suppression
No
Outlet Type
Inlet
Wiring Method - Plugs and Receptacles
Side
Weather Resistant - Plugs and Receptacles
Yes
Wiring Method
Side
Mounting Type
Panel
Power Indicator
No
Tamper Resistant
No
Voltage
125VAC
Number of Gangs
1
Weather Resistant
Yes
Housing Material
Thermoplastic
Maximum Operating Temperature
75 Degrees C
Number of Blades
3
NEMA Plug Configuration
5-15P
Cover Type
Flip-Up Cover
Connection Orientation
Straight
Grade
Marine
Flange Shape
Rectangular
Surge Protection
No
Horsepower Rating
1/2 hp
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Rating
15A 125V, 2p3w
Poles and Wires
2 Pole, 3 Wire Grounding
Approvals
UL, CSA
Moisture Resistance
IP20
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Cord Range
0.230"-0.360" (5.8-18.3)
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Nema Rating
5-15P
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186
Application
Marine Wiring Devices
Dielectric Strength
Withstands 2,000V minimum
Wattage
1875 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Insulation
Insulated Body

Description

Flanged Inlet, Cover Type Flip-Up Cover, Current Rating 15 A, Flange Shape Rectangular, Grounding Grounded, Housing Color Gray, IP Rating IP20, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Voltage Rating 125V AC, Connection Orientation Straight, Flange Type Flanged, Grade Marine, Horsepower Rating 1/2 hp, Market Industrial, Resistance Properties Weather Resistant, Standards CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186
