Shop HUBBELL WIRING DEVICE-KELLEMS

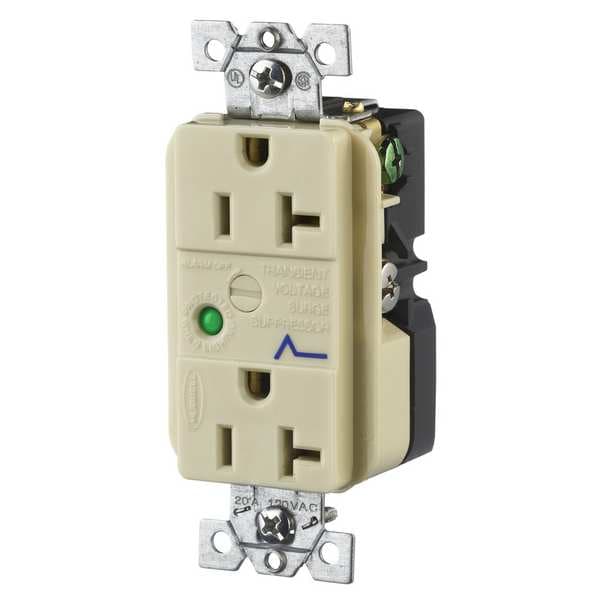

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362ISA

  • Zoro # G0641137

product price:
$
104.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL5362ISA
Zoro #
G0641137
UPC #
783585060279
Country of Origin
China
Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, UL 498, UL E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Corrosion Resistant
No
NEMA Configuration
5-20
Material
Composite
Weather Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Outlet Type
Duplex
Special Features
Audible Alarm
Sub-Category
Duplex Receptacles
HP
1 hp
Color
Ivory
Number of Gangs
1
Application Environment
Harsh and Heavy Use Industrial
Mounting Type
Flush
Power Indicator
Yes
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Type
Duplex
Frequency
60 Hz
Nema Rating
5-20R
Application
Decorator Duplex with Light and Alarm
Amperage
20 A
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Brand
Hubbell Wiring Device-Kellems
Response Time
5
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Indicator Type
LED and Audible Alarm
Mounting Hardware Material
Mounting Screws
Carton Quantity
10
Connectivity
Terminal Screws
Series
Specification Grade
Outlet
Straight Blade
Surge Protection
Yes
Cover Type
No Cover
Connection Orientation
Straight
GFCI
No
Horsepower Rating
1 hp
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
32 Degrees F
NEMA Enclosure Rating
1
Shrouded
No
Market
Industrial
Housing Material
Nylon
Polarized
Yes
For Location
Indoor
AFCI
No
Grade
Federal Specification
Includes
Grounding Clip
Visual Indicator Lights
Power Connected
UL 94 Flammability Rating
V-2
Receptacle Grade
Standard
Mounting Screws
Steel, Zinc-Plated
Terminal Screws
#8-32 Brass
Installation Categories
A (Ring Wave), "B" (Unidirectional Impulses)
Listed To:
UL Standards 498 Receptacles, Meets UL1449 TVSS
ANSI/IEEE
C62.41 (IEEE 587)
Clamping Plate
.031" (.8) Brass
Power Contact
.031" (.8) Brass
Receptacle Style
Duplex
LED
Red
Contact Design
Tandem Modified Bypass
Device Top
Nylon
Auto Ground Clip
Stainless Steel
CSA Certified
To Specification C22.2 No. 42
Grounding Screw
Steel (Green)
Certifications
UL Listed File E2186
Poles and Wires
2 Pole, 3 Wire
Device Base
Nylon
Mounting Strap
.050" (1.3) Steel-Zinc Coated
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 UL Listed File E2186
Material - Mounting Hardware
Mounting Screws
Performance
Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Indicator(s) Type
LED and Audible Alarm
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Frequency Rating
60 Hz
Status Indicator Lights
Power Connected

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a duplex receptacle with integrated surge suppression designed for use in indoor, dry industrial settings. This duplex straight blade outlet includes audible and visual indicators for monitoring surge suppression status, with an LED power indicator and alarm that indicates end-of-life for internal surge suppression components. The device features two internal metal oxide varistors (MOVs) for transient voltage suppression, rated according to ANSI/IEEE C62.41 standards.


Key Features of the HUBBELL 20A Duplex Surge Protection Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125V AC; NEMA configuration 5-20R

  • Surge Suppression: Integrated MOVs for transient voltage suppression with nominal 5 ns response time

  • Indicators: Red LED indicator displays power status; audible alarm signals end-of-life for surge protection

  • Grounding: Self-grounding staple and green steel grounding screw included

  • Wiring Method: Supports back and side wiring via terminal screws (#8-32 brass)

  • Material Construction: Nylon device base and top; composite housing suitable for harsh industrial use

  • Mounting Type: Flush mount installation with zinc-plated steel mounting strap and hardware

  • Circuit Configuration: Single phase, polarized, duplex outlet (2 pole, 3 wire)

  • Certifications & Standards: UL Listed File E2186; CSA Certified C22.2 No.42; meets UL498 & IEEE C62.41 requirements
