  11. Straight Blade Inlet, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

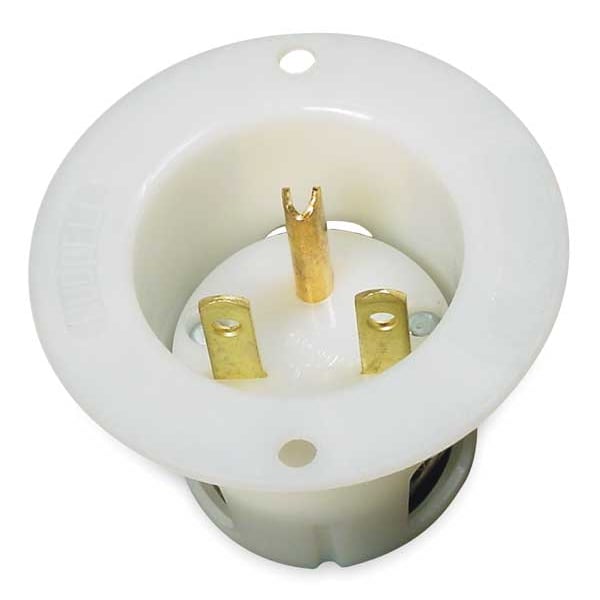

Hubbell Wiring Device-Kellems Straight Blade Inlet, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5678C - main

Straight Blade Inlet, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5678C

  • Zoro # G1934965

product price: $26.69
/ea

Key Features

Receptacle Type
Single
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5678C
Zoro #
G1934965
UPC #
783585175959
Country of Origin
United States

Dimensions

Width
2.56 in
Height
2.56 in
Display Size
Standard Sized Product
Length
1.72 in
Wire Size
#18 AWG to #10 AWG
Dimensions
1.72 in x 2.56 in x 2.56 in

Details

Item
Straight Blade Inlet
Receptacle Type
Single
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Flanged
Sub-Category
Inlets
Power Indicator
No
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Panel
HP
1 1/2 hp
Material
Nylon/Polycarbonate
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
6-15R
Outlet Type - Plugs and Receptacles
Inlet
Corrosion Resistant
No
Number of Gangs
1
Tamper Resistant
No
Voltage
250VAC
Mounting Type - Plugs and Receptacles
Panel
Wiring Method - Plugs and Receptacles
Back
Outlet Type
Inlet
Application Environment
Industrial
Type
Miniature
Includes
Mounting Screws
Grade
Specification
Horsepower Rating
1 1/2 hp
Number of Blades
3
NEMA Plug Configuration
6-15P
Connection Orientation
Straight
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Blade Material
Brass
Flange Shape
Round
Market
Industrial
Surge Protection
No
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Standard
NEMA
Mounting Screw Material
Brass-Nickel Plated
Top Material
Nylon
Device Color
White
Horsepower
1.5
Terminal Screw Material
#8-32 Brass, Multiple Drive
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Accommodation
#18-#10 AWG copper stranded or solid conductor only
Current Interrupting
Certified for current interrupting at full rated current
Rating
15A, 250V
Inlet Type
Standard Non-Metallic
Flammability
UL 94 V2.
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Receptacle Grade
Heavy Duty Spec Grade
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3-Wire Grounding
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Power Contacts Material
.040" (1.0) Brass
Base Material
Polycarbonate
Dielectric Strength
Withstands 2,000V minimum
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Series
Extra Heavy Duty
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186
Material - Mounting Hardware
Screw Mounting
Number Of Conductors
3-Wire Grounding
Wattage
3750 W
Nema Rating
6-15P
Application
Extra Heavy Duty Industrial
Horsepower - Maximum
1.5
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

The HUBBELL Flanged Inlet is a panel mount, single straight blade receptacle suitable for use in industrial applications. Rated for 15A and 250V AC, this inlet includes a round flange; NEMA 6-15R configuration. It is housing made of thermoplastic materials and includes backwired terminations to accommodate #18-#10 AWG copper conductors. The device is equipped with screw terminals for grounding and comes with mounting screws for installation.


Key Features of the HUBBELL Flanged Inlet:

  • Amperage/Voltage: Rated for 15A, 250V AC

  • NEMA Configuration: 6-15R (2 pole, 3-wire grounding)

  • Construction: Nylon/polycarbonate housing; brass blades

  • Mounting Type: Panel mount with included mounting screws

  • Wire Connection: Backwired screw terminals suitable for #18–#10 AWG copper wire

  • Dielectric Strength: rated at 2,000V

  • Temperature Range: Operating temperature range: -40°C to +75°C

  • Certain Standards Met: UL Listed (E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant

  • No cover or surge/tamper/weather resistance features included; indoor dry use unless otherwise protected
