  6. Straight Blade Plug, 10-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

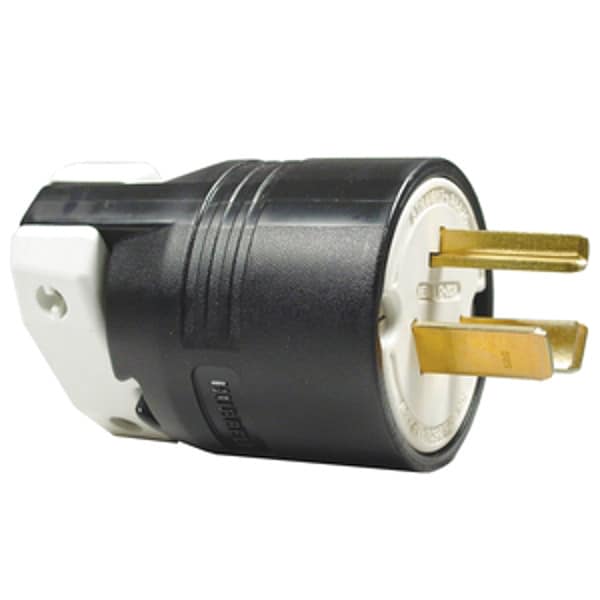

Hubbell Wiring Device-Kellems Straight Blade Plug, 10-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded HBL9337C - main

Straight Blade Plug, 10-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

  • Mfr # HBL9337C

  • Zoro # G1811144

product price:  $63.65
/ea

Key Features

NEMA Plug Configuration
10-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9337C
Zoro #
G1811144
UPC #
783585015699
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.000 in
Maximum Wire Size
4 AWG
Minimum Wire Size
12 AWG
Body Length
4.13 in
Length
4.13 in
Wire Size
#12 AWG to #4 AWG
Width
2.75 in
Dimensions
4.13 in x 2.75 in x 2.88 in
Height
2.88 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
10-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Non-Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Corrosion Resistant
Voltage
125/250VAC
Grade
Industrial
Grade - Plugs and Receptacles
Industrial
Number of Wires
3
Special Features
Corrosion resistant
Material
Nylon
HP
2.0 Line to Line, 2.0 Line to Neutral
Phase - Plugs and Receptacles
3
Antimicrobial
No
Boot Code
B
NEMA Plug Configuration - Plugs and Receptacles
10-30P
Corrosion Resistant
Yes
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
HB
Horsepower Rating
2 hp
Market
Commercial, Industrial
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Insulation Material
Nylon
Housing Material
Nylon
Cord Clamp Material
Reinforced Thermoplastic Polyester
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Terminal Screw Material
3/8" Allen Head, Plated Steel
Flammability
Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer).
Body Style
Straight
Retainer Material
Reinforced Thermoplastic Polyester
Contact Blades Material
.060" Brass
Box Terminals Material
Copper
Horsepower - Maximum
2
Cord Range
0.625"-1.00"
Blade Holder Material
Reinforced Thermoplastic Polyester
OEM Brand Name
Hubbell Wiring Device-Kellems
Weight (Lbs.)
0.8
Dielectric Strength
Withstands 2,000V minimum
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Wattage
7500 W

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 30 A, Grounding Non-Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 10-30P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1 in, For Minimum Cable Diameter 0.625 in
