  6. Straight Blade Plug, 10-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

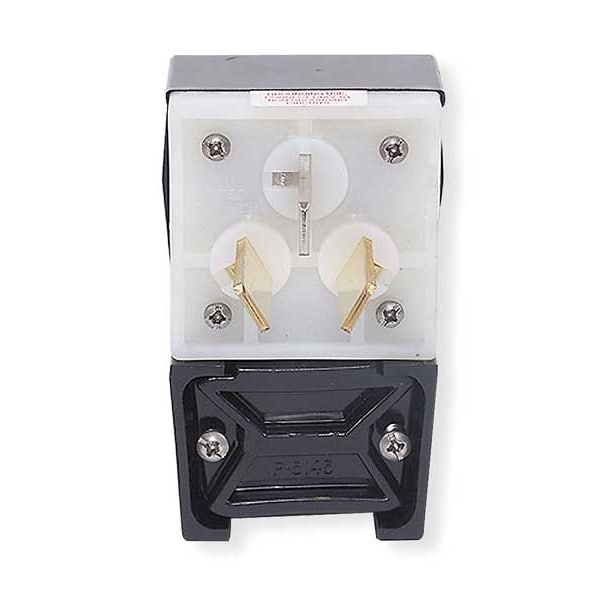

Hubbell Wiring Device-Kellems Straight Blade Plug, 10-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded HBL7977 - main

Straight Blade Plug, 10-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

  • Mfr # HBL7977

  • Zoro # G0250241

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
10-50P
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL7977
Zoro #
G0250241
UPC #
783585015132
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.187 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.187 in
Body Length
4.33 in
Dimensions
4.33 in x 2.75 in x 1.88 in
Width
2.75 in
Length
4.33 in
Height
1.88 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
10-50P
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Non-Grounded
Housing Color
Black
IP Rating
IP20
Standards
UL 498
Resistance Properties
Corrosion Resistant
Corrosion Resistant
Yes
HP
2.0 Line to Neutral, 3.0 Line to Line
Voltage
125/250VAC
Grade
Industrial
Grade - Plugs and Receptacles
Industrial
NEMA Plug Configuration - Plugs and Receptacles
10-50P
Material
Nylon
NEMA Configuration
10-50
Number of Wires
3
Phase - Plugs and Receptacles
3
Antimicrobial
No
Special Features
Corrosion resistant
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Horsepower Rating
2 hp, 3 hp
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Polarized
Yes
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Retainer Material
Reinforced Thermoplastic Polyester
Body Style
Angle
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Weight (Lbs.)
0.55
Terminal Screw Material
3/8" Allen Head, Plated Steel
Box Terminals Material
Copper
Flammability
Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer).
Dielectric Strength
Withstands 2,000V minimum.
Contact Blades Material
.060" (1.5) Brass
Blade Holder Material
Reinforced Thermoplastic Polyester
Cord Clamp Material
Reinforced Thermoplastic Polyester
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Cord Range
0.625"-1.187"
Industry Standard(s)
UL Listed, File E2186, Listed To UL Standard 498
Horsepower - Maximum
3

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 50 A, Grounding Non-Grounded, Horsepower Rating 2 hp, 3 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 10-50P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.187 in, For Minimum Cable Diameter 0.625 in, Grade Industrial
