  11. Straight Blade Plug, 15-30P, 30 A, 250V AC, 3 Pole, Screw Terminals, Grounded

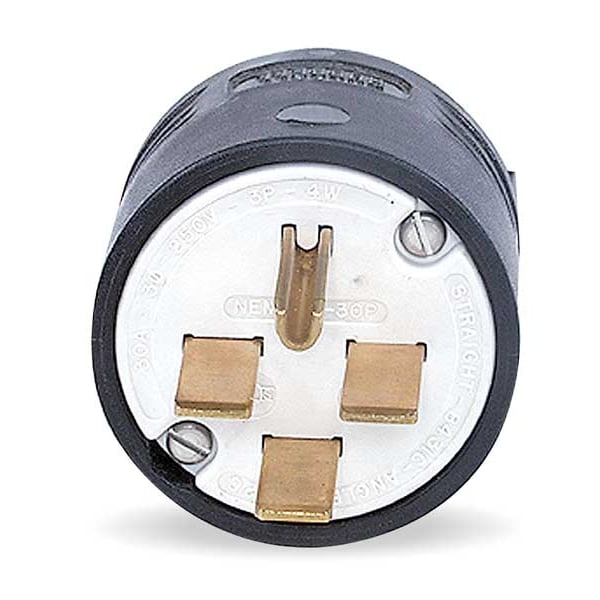

Hubbell Wiring Device-Kellems Straight Blade Plug, 15-30P, 30 A, 250V AC, 3 Pole, Screw Terminals, Grounded HBL8431C - main

Straight Blade Plug, 15-30P, 30 A, 250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL8431C

  • Zoro # G2747035

product price: $89.95
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
15-30P
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8431C
Zoro #
G2747035
UPC #
783585015408
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in
Maximum Wire Size
4 AWG
Minimum Wire Size
12 AWG
Wire Size
#12 AWG to #4 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
15-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Corrosion Resistant
Corrosion Resistant
Yes
Voltage
250VAC
HP
3.0
Grade
Industrial
Material
Nylon
Phase - Plugs and Receptacles
3
Grade - Plugs and Receptacles
Industrial
Special Features
Corrosion resistant
NEMA Plug Configuration - Plugs and Receptacles
15-30P
Number of Wires
4
Antimicrobial
No
Boot Code
C
Market
Industrial
Insulation Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
3 hp
Polarized
Yes
Housing Material
Nylon
UL 94 Flammability Rating
HB
Maximum Operating Temperature
167 Degrees F
Ground Screw Material
3/8" Allen Head, Plated Steel
Weight (Lbs.)
0.8
Retainer Material
Glass Reinforced PET
Box Terminals Material
Copper
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Body Style
Straight
Flammability
UL 94 HB or better.
Cord Clamp Material
Glass Reinforced Polyester
Contact Blades Material
.100" Brass
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Contact Blade Material
.075" Brass
Terminal Screw Material
Steel - Zn plated
Blade Holder Material
Glass Reinforced PET
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical: Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage : Withstands 2,000V minimum Mechanical: Terminal Accommodation: #12 AWG through #4 AWG copper wire only Terminal Identification :Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 HB IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
UL Listed File E1706 Certified to CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 30 A, Grounding Grounded, Horsepower Rating 3 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 15-30P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in
