  11. Straight Blade Plug, 15-30P, 30 A, 250V AC, 3 Pole, Screw Terminals, Grounded

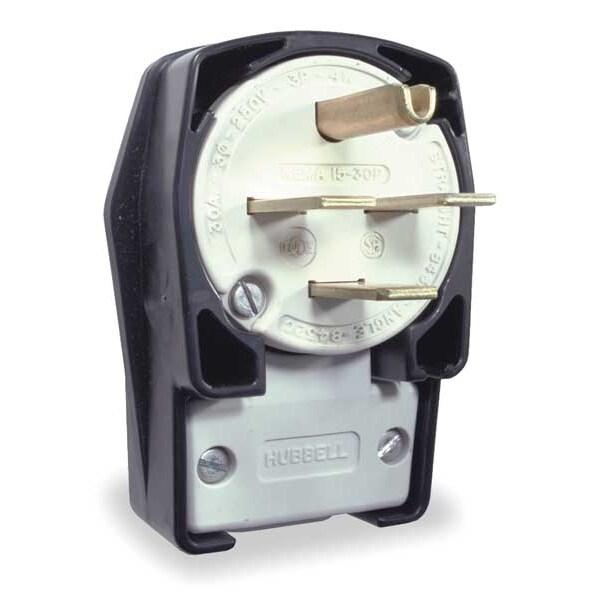

Hubbell Wiring Device-Kellems Straight Blade Plug, 15-30P, 30 A, 250V AC, 3 Pole, Screw Terminals, Grounded HBL8432C - main

Straight Blade Plug, 15-30P, 30 A, 250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL8432C

  • Zoro # G2047001

product price: $95.31
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
15-30P
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8432C
Zoro #
G2047001
UPC #
783585015415
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in
Maximum Wire Size
4 AWG
Minimum Wire Size
12 AWG
Wire Size
#12 AWG to #4 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
15-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Corrosion Resistant
Antimicrobial
No
Voltage
250VAC
HP
3.0
Corrosion Resistant
Yes
Special Features
Corrosion resistant
NEMA Plug Configuration - Plugs and Receptacles
15-30P
Material
Nylon
Phase - Plugs and Receptacles
3
NEMA Configuration
15-30
Grade - Plugs and Receptacles
Industrial
Number of Wires
4
Grade
Industrial
NEMA Rating
WD-6; 15-30P
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Market
Industrial
Housing Material
Nylon
Insulation Material
Nylon
Horsepower Rating
3 hp
UL 94 Flammability Rating
HB
Box Terminals Material
Copper
Blade Holder Material
Glass Reinforced PET
Blade Material
Solid Brass
Cord Clamp Material
Glass Reinforced Polyester
Body Material
Impact Modified Nylon
Environment
Dry
Body Style
Angle
Weight (Lbs.)
0.85
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact).
Dielectric Strength
Withstands 2000V per UL498
Flammability
Rated HB or better UL94
Contact Blades Material
.100" Brass
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Terminal Screw Material
Steel - Zn plated
Ground Screw Material
3/8" Allen Head, Plated Steel
Retainer Material
Glass Reinforced PET
Ground Contact Blade Material
.075" Brass
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical: Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage : Withstands 2,000V minimum Mechanical: Terminal Accommodation: #12 AWG through #4 AWG copper wire only Terminal Identification :Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 HB IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
UL Listed File E1706 Certified to CSA

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 30 A, Grounding Grounded, Horsepower Rating 3 hp, Housing Color Black, White, IP Rating IP20, NEMA Plug Configuration 15-30P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in
