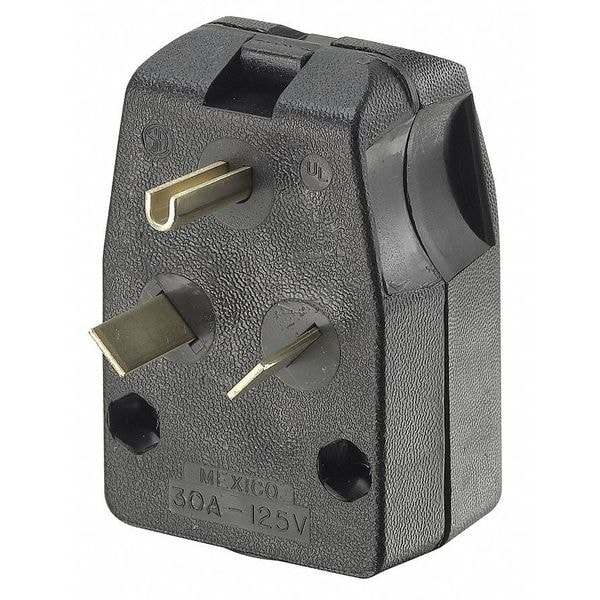

Straight Blade Plug, TT-30P, 30 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 830-E

  • Zoro # G104393265

product price:
$
23.89
/ea

Key Features

NEMA Plug Configuration
TT-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
830-E
Zoro #
G104393265
UPC #
07847732025
Country of Origin
Mexico
Item
Straight Blade Plug
NEMA Plug Configuration
TT-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Moisture Resistant
HP
2 hp
Number of Wires
3
Special Features
Ratings are permanently marked on device
Material
Thermoplastic
Grade - Plugs and Receptacles
Industrial
NEMA Plug Configuration - Plugs and Receptacles
TT-30P
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1/2 hp
Housing Material
Rubber
Blade Material
Brass
Polarized
No
Market
Industrial
For Location
Indoor, Outdoor
Minimum Operating Temperature
-40 Degrees F
Body Material
Thermoplastic
Wire Gauge
10 AWG
Operating Temp.
-40°C to 60°C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Dielectric Strength
Withstands 2000V per UL498
Assembly Screws
Steel, Zinc Plated
Temp. Rise
Max 30C after 50 cycles OL at 150 percent rated current
Power Indicating Light
No
Series
Insulgrip
NEMA Enclosure Rating
Not Rated
Shrouded
No
Grade
General Use

Description

Straight Blade Plug, Connection Orientation Angled, Current Rating 30 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, IP Rating Not Rated, NEMA Plug Configuration TT-30P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized No, Resistance Properties Shatter and Crack Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.25 in, Grade General Use
