  11. Straight Blade Plug, 2-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Non-Grounded

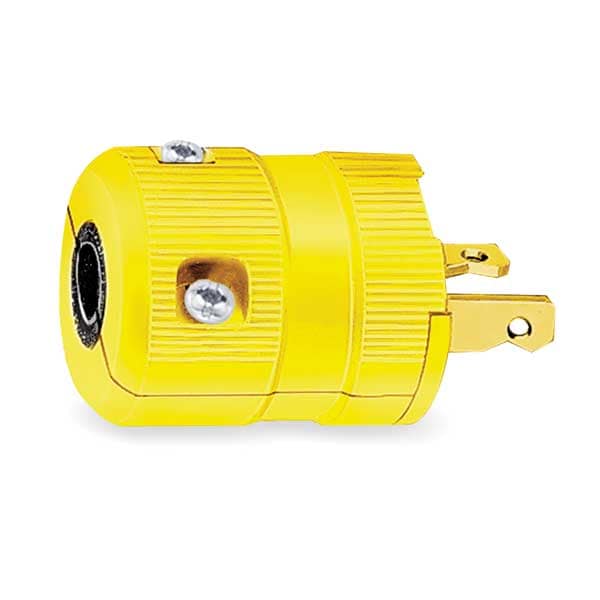

Hubbell Wiring Device-Kellems Straight Blade Plug, 2-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Non-Grounded HBL9758VY - main

Straight Blade Plug, 2-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Non-Grounded

  • Mfr # HBL9758VY

  • Zoro # G1609982

product price: $26.15
/ea

Key Features

NEMA Plug Configuration
2-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9758VY
Zoro #
G1609982
UPC #
783585013312
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.660 in
Body Length
1.88 in
Outside Diameter
1.5 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
2-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
2
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Non-Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
UL
Resistance Properties
Corrosion Resistant
Material
Nylon
Grade - Plugs and Receptacles
Industrial
Special Features
Corrosion resistant
NEMA Plug Configuration - Plugs and Receptacles
2-20P
Voltage
250VAC
Corrosion Resistant
Yes
HP
2.0
Grade
Industrial
Phase - Plugs and Receptacles
1
Antimicrobial
No
Number of Wires
2
Insulation Material
Nylon
Market
Industrial
Horsepower Rating
2 hp
Polarized
Yes
Housing Material
Nylon
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Dielectric Strength
Withstands 2000V per UL498
Blade Material
Solid Brass
Cord Clamp Material
Noryl (Polyphenylene Oxide)
Body Material
Impact Modified Nylon
Flammability
Rated HB or better UL94
Terminal Screw Material
Steel (copper or nickel finish)
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact)
Contact Blades Material
Brass
Weight (Lbs.)
0.15
Body Style
Straight
Environment
Dry

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Non-Grounded, Horsepower Rating 2 hp, Housing Color Yellow, IP Rating IP20, NEMA Plug Configuration 2-20P, Number of Blades 2, Number of Poles 2, Phase Single, Polarized Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.22 in, Grade Industrial, Housing Material Nylon, Insulation Material Nylon
