  11. Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

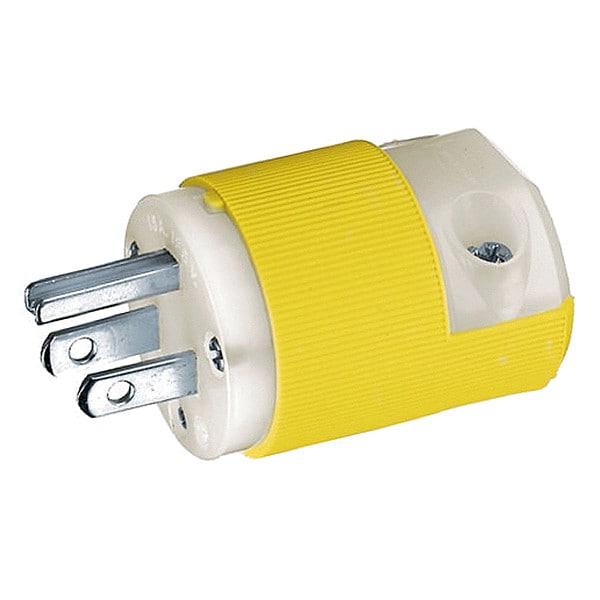

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL52CM66C - main

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL52CM66C

  • Zoro # G3221845

product price: $20.05
/ea

Key Features

NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL52CM66C
Zoro #
G3221845
UPC #
783585161501
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Outside Diameter
1.52 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Body Length
1.52 in
Length
1.52 in
Width
1.52 in
Wire Size
#18 AWG to #10 AWG
Dimensions
1.52 in x 1.52 in x 1.96 in
Height
1.96 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Grade
Marine
NEMA Configuration
5-15
Corrosion Resistant
Corrosion Resistant
Material
Nylon
Grade - Plugs and Receptacles
Marine
Voltage
125VAC
Number of Wires
3
Antimicrobial
No
HP
0.5
Special Features
Corrosion resistant
Phase - Plugs and Receptacles
1
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Horsepower Rating
1/2 hp
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Housing Material
Polycarbonate
UL 94 Flammability Rating
HB
Market
Commercial, Industrial
Insulation Material
Nylon
Weight (Lbs.)
0.2
Housing Type
Standard
Dielectric Strength
Withstands 2,000V minimum
Flammability
UL 94 HB or better
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Application
Industrial/Commercial Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Style
Corrosion Resistant
Series
Insulgrip
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

The HUBBELL 3 Wire Industrial Straight Blade Plug is a grounded plug suitable for industrial and commercial applications, rated for 15 amps and 125 volts AC. It features a straight blade configuration (NEMA 5-15P) with three wires and two poles, suitable for single-phase applications. The plug's ribbed nylon housing features specified impact and chemical resistance properties, while the adjustable VARI-SIZE cord clamp is compatible with cable diameters from 0.23 in to 0.72 in.


Key Features of the HUBBELL - 3 Wire Industrial Straight Blade Plug:

  • Amperage/Voltage Rating: Rated for 15 A at 125 V AC

  • NEMA Configuration: NEMA 5-15P straight blade design

  • Cord Accommodation: Accepts cord sizes from 0.230 in to 0.720 in diameter (#18 AWG to #10 AWG wire)

  • Housing Material: Ribbed nylon housing has specified impact and chemical resistance characteristics

  • Cord Clamp: VARI-SIZE adjustable clamp is compatible with various cable sizes within the specified range

  • Screw Terminals: Provided for wiring connections

  • Beveled Housing: Intended to reduce potential snagging during handling or installation

  • Corrosion Resistant: Corrosion-resistant construction; see specifications for environmental suitability

  • Flammability & Dielectric Strength: Meets UL94 HB flammability rating; withstands minimum dielectric voltage of 2,000V

  • Standards Compliance: CSA Certified C22.2 No.42 File 280, NEMA WD-6 compliant, UL Listed UL498 File E1706
