Shop HUBBELL WIRING DEVICE-KELLEMS

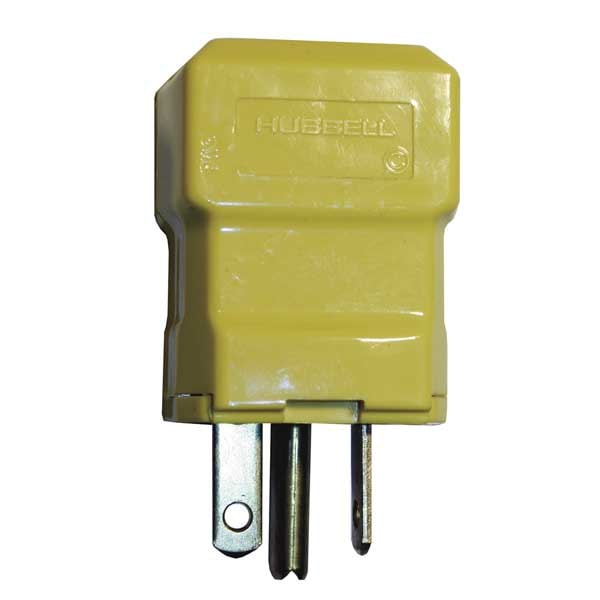

Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5464VY

  • Zoro # G1203982

product price:  $21.99
/ea

Key Features

NEMA Plug Configuration
6-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL5464VY
Zoro #
G1203982
UPC #
783585013183
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.660 in
Maximum Wire Size
12 AWG
Minimum Wire Size
18 AWG
Body Length
1.88 in
Dimensions
1.88 in x 1.5 in x 1.13 in
Width
1.5 in
Height
1.13 in
Length
1.88 in
Wire Size
#18 AWG to #12 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Voltage
250VAC
Grade - Plugs and Receptacles
Industrial
Corrosion Resistant
Yes
Phase - Plugs and Receptacles
1
Grade
Industrial
Number of Wires
3
NEMA Plug Configuration - Plugs and Receptacles
6-20P
Material
Nylon
Special Features
Corrosion resistant
HP
2.0
Antimicrobial
No
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Insulation Material
Nylon
Market
Commercial, Industrial
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
HB
Polarized
Yes
Blade Material
Solid Brass
Flammability
Rated HB or better UL94
Weight (Lbs.)
0.15
Ground Screw Material
Steel (green finish)
Dielectric Strength
Withstands 2000V per UL498
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact)
Ground Contact Blade Material
.040" (1.0) Copper Alloy
Contact Blades Material
.060" (1.5) Brass
Terminal Screw Material
Steel (copper or nickel finish)
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Material
Impact Modified Nylon
Blade Holder Material
Nylon
Environment
Dry
Body Style
Straight
Cord Clamp Material
Noryl (Polyphenylene Oxide)
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Standard
Horsepower - Maximum
2
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#12 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Series
Valise
Wattage
5000 W

Description

• Hinged one piece body design for easy assembly
• Powerful, offsetting cord grips clamp on individual conductors
• Assembly screws are captive and will not fall out while wiring
