  11. Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

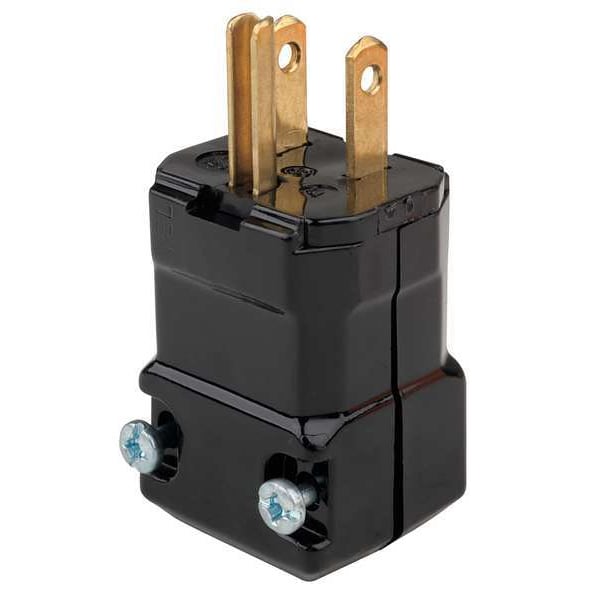

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL5965VBLK - main

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5965VBLK

  • Zoro # G1935631

product price: $13.15
/ea

Key Features

NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5965VBLK
Zoro #
G1935631
UPC #
783585013084
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.660 in
Minimum Wire Size
18 AWG
Maximum Wire Size
12 AWG
Body Length
1.87 in
Dimensions
1.87 in x 1.12 in x 1.87 in
Width
1.12 in
Wire Size
#18 AWG to #12 AWG
Height
1.87 in
Length
1.87 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Grade - Plugs and Receptacles
Commercial
Antimicrobial
No
HP
0.5
Special Features
Corrosion resistant
Number of Wires
3
Voltage
125VAC
Phase - Plugs and Receptacles
1
NEMA Configuration
5-15
Material
Nylon
Corrosion Resistant
Yes
Grade
Commercial
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Insulation Material
Nylon
UL 94 Flammability Rating
HB
Horsepower Rating
2 hp
Market
Commercial, Industrial
Housing Material
Polycarbonate
Environment
Dry
Weight (Lbs.)
0.1
Contact Blades Material
.060" (1.5) Brass
Cord Clamp Material
Noryl (Polyphenylene Oxide)
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Style
Straight
Ground Contact Blade Material
.040" (1.0) Brass
Terminal Screw Material
Steel (copper or nickel finish)
Blade Material
Solid Brass
Dielectric Strength
Withstands 2000V per UL498
Ground Screw Material
Steel (green finish)
Other Available Colors
Black, Gray, Yellow, Orange
Flammability
Rated HB or better UL94
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact).
Body Material
Impact Modified Nylon
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
2
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Cord Mounted
Style
Standard
Series
Valise
Industry Standard(s)
CSA Certified to C22.2 No 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Industrial/Commercial Grade

Description

The HUBBELL 3 Wire Commercial Straight Blade Plug is a straight blade plug suitable for industrial and commercial applications, rated for 15 amps and 125 volts AC. It features a hinged one-piece body design that enables assembly, with screw terminals accommodate wire connections. The plug accommodates cord sizes from 0.22 in to 0.66 in diameter and supports wire sizes from #18 AWG to #12 AWG stranded copper wire.


Key Features of the HUBBELL 3 Wire Commercial Straight Blade Plug:

  • Amperage/Voltage Rating: Rated for 15 A, 125V AC

  • NEMA Configuration: 5-15P (2 poles, grounded)

  • Body Material: Impact modified nylon housing with polycarbonate components

  • Cord Clamp Material: Noryl (polyphenylene oxide) clamp holds individual conductors in place

  • Connection Type: Screw terminals accommodate wire connections (#18–12 AWG stranded copper wires)

  • Cable Diameter Range: Accepts cords from 0.22 in to 0.66 in diameter

  • Corrosion Resistance: Constructed with materials rated as corrosion resistant per manufacturer specifications; intended for use in dry environments.

  • Dielectric Strength & Flammability: Rated up to 2000V per UL498; flammability rating HB or better (UL94).

  • Operating Temperature Range: -40°C to +75°C continuous operation without impact

  • Standards Compliance: CSA Certified C22.2 No.42 File 280C, NEMA WD-6, UL Listed UL498 File E1706
