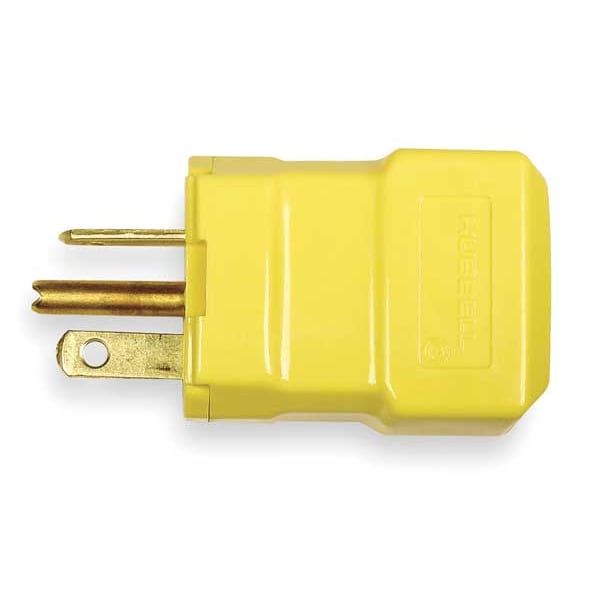

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5364VY
  • Zoro # G3180003
product price:
$
19.24
/ea

Key Features

NEMA Plug Configuration
5-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL5364VY
Zoro #
G3180003
UPC #
783585013169
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.660 in
Body Length
1.87 in
Minimum Wire Size
18 AWG
Maximum Wire Size
12 AWG
Length
1.87 in
Height
1.87 in
Dimensions
1.87 in x 1.25 in x 1.87 in
Width
1.25 in
Wire Size
#18 AWG to #12 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706
Resistance Properties
Corrosion Resistant
Special Features
Corrosion resistant
HP
1 hp
Material
Nylon
Grade
Industrial
Corrosion Resistant
Yes
Phase - Plugs and Receptacles
1
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Voltage
125VAC
Antimicrobial
No
Grade - Plugs and Receptacles
Industrial
Number of Wires
3
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Insulation Material
Nylon
UL 94 Flammability Rating
HB
Market
Commercial, Industrial
Housing Material
Polycarbonate
Horsepower Rating
1 hp
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Material
Impact Modified Nylon
Cord Clamp Material
Noryl (Polyphenylene Oxide)
Environment
Dry
Blade Material
Solid Brass
Flammability
Rated HB or better UL94
Ground Contact Blade Material
.040" (1.0) Copper Alloy
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Screw Material
Steel (copper or nickel finish)
Weight (Lbs.)
0.1
Contact Blades Material
.060" (1.5) Brass
Body Style
Straight
Ground Screw Material
Steel (green finish)
Dielectric Strength
Withstands 2000V per UL498
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Industrial/Commercial Grade
Material - Mounting Hardware
Cord Mounted
Performance
Electrical:Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage: Withstands 2,000V minimum Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental :Flammability: UL 94 HB or better IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
Industry Standard(s)
CSA Certified to C22.2 No 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Style
Standard
Horsepower - Maximum
1
Series
Valise
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

The HUBBELL 3 Wire Industrial Straight Blade Plug is a plug rated for operation at 125V AC, up to 20 amps. It features a hinged, one-piece body design intended to facilitate assembly and utilizes screw terminals for wire connections. The plug accommodates three wires and is grounded; compatible with applications requiring NEMA 5-20P configuration.


Key Features of the HUBBELL 3 Wire Industrial Straight Blade Plug:

  • Amperage/Voltage Rating: Rated for 20A at 125V AC

  • NEMA Configuration: 5-20P, polarized and grounded

  • Body Material: Impact modified nylon housing with polycarbonate components

  • Cord Clamp Material: Noryl (polyphenylene oxide) cord clamp secures cables from 0.22 in to 0.66 in diameter

  • Wire Accommodation: Accepts #18 AWG to #12 AWG stranded copper wire only

  • Connection Type: Screw terminals with captive assembly screws

  • Blade Materials: Solid brass blades; ground contact blade made from copper alloy

  • Corrosion Resistance: Rated for use in dry environments per manufacturer specifications

  • Flammability & Dielectric Strength: UL94 HB or better flammability rating; withstands dielectric voltage of up to 2000V per UL498 standards

  • Operating Temperature Range: -40°C to +75°C (maximum continuous)

  • Certifications & Standards: CSA Certified C22.2 No.42 File 280C, NEMA WD-6 compliant, UL Listed to UL498 File E1706
