  11. Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

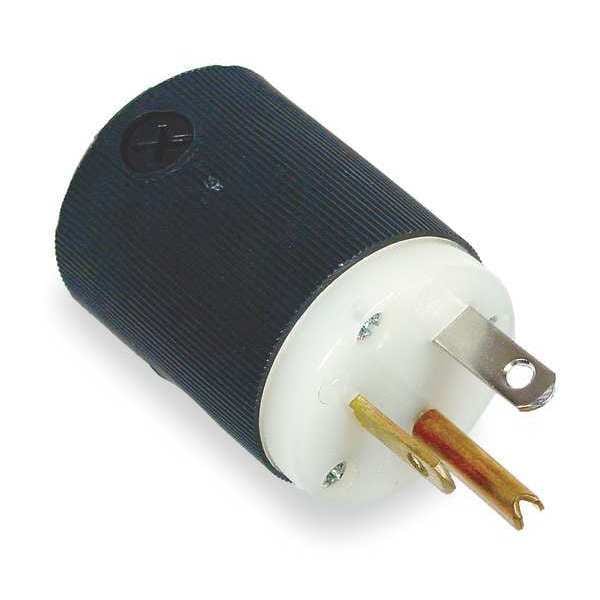

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL5366C - main

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5366C

  • Zoro # G3356254

product price: $25.45
/ea

Key Features

NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5366C
Zoro #
G3356254
UPC #
783585173955
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Outside Diameter
1.52 in
Body Length
1.52 in
Length
1.52 in
Height
1.96 in
Width
1.52 in
Wire Size
#18 AWG to #10 AWG
Dimensions
1.52 in x 1.52 in x 1.96 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Voltage
125VAC
Corrosion Resistant
Yes
Material
Nylon
Grade - Plugs and Receptacles
Industrial
Number of Wires
3
Antimicrobial
No
Phase - Plugs and Receptacles
1
Grade
Industrial
NEMA Plug Configuration - Plugs and Receptacles
5-20P
HP
1.0
Special Features
Corrosion resistant
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
HB
Insulation Material
Nylon
Market
Commercial, Industrial
Horsepower Rating
1 hp
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Housing Material
Polycarbonate
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Contact Blades Material
.060" (1.5) Brass
Body Style
Straight
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact)
Ground Contact Blade Material
.040" (1.0) Copper Alloy
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Environment
Dry
Dielectric Strength
Withstands 2000V per UL498
Blade Material
Solid Brass
Weight (Lbs.)
0.15
Flammability
Rated HB or better UL94
Cord Clamp Material
Nylon-Natural
Retainer Material
Polycarbonate-Clear
Body Material
Impact Modified Nylon
Blade Holder Material
Nylon-Natural
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Application
Industrial/Commercial Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Standard
Horsepower - Maximum
1
Series
Insulgrip

Description

• Ribbed nylon housing is impact and chemical resistant
• VARI-SIZE adjustable cord clamp
• Fast lead assembly screws
• Beveled housing prevents snagging
