Shop HUBBELL WIRING DEVICE-KELLEMS

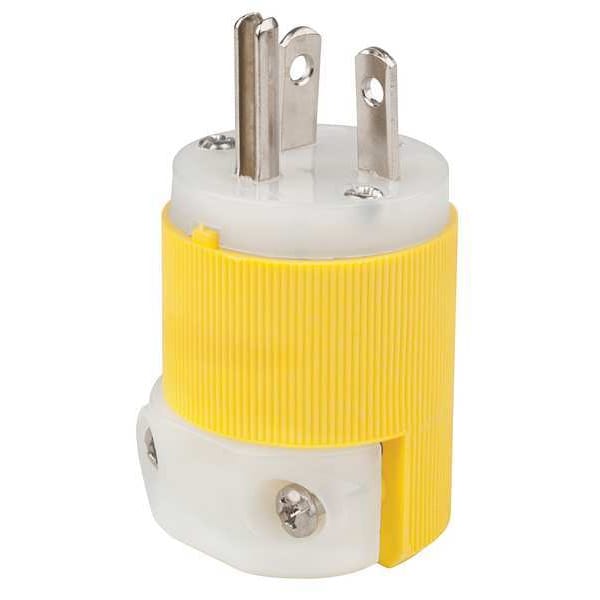

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL53CM66C

  • Zoro # G1262676

product price:  $30.99
/ea

Key Features

NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL53CM66C
Zoro #
G1262676
UPC #
783585161709
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Outside Diameter
1.52 in
Maximum Wire Size
10 AWG
Body Length
1.52 in
Minimum Wire Size
18 AWG
Height
1.96 in
Wire Size
#18 AWG to #10 AWG
Dimensions
1.52 in x 1.52 in x 1.96 in
Width
1.52 in
Length
1.52 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Corrosion Resistant
Yes
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Voltage
125VAC
Antimicrobial
No
Grade - Plugs and Receptacles
Marine
Special Features
Corrosion resistant
Material
Nylon
Phase - Plugs and Receptacles
1
Number of Wires
3
Grade
Marine
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Polycarbonate
Horsepower Rating
2 hp
Market
Commercial, Industrial
Polarized
Yes
UL 94 Flammability Rating
HB
Insulation Material
Nylon
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
UL 94 HB or better
Weight (Lbs.)
0.2
Housing Type
Standard
Dielectric Strength
Withstands 2,000V minimum
Application
Industrial/Commercial Grade
Style
Corrosion Resistant
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series
Insulgrip
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Horsepower - Maximum
2

Description

The HUBBELL 3 Wire Industrial Straight Blade Plug is a plug rated for use in industrial and commercial settings; provides electrical connection as specified. It features a straight blade configuration, rated for 20 amps at 125VAC, and accommodates three wires with grounding. The plug includes a ribbed nylon housing that resists impact and chemicals, as well as an adjustable cord clamp suitable for cable diameters from 0.23 in to 0.72 in.


Key Features of the HUBBELL 3 Wire Industrial Straight Blade Plug:

  • Amperage/Voltage Rating: Rated for 20A at 125V AC

  • NEMA Configuration: NEMA 5-20P, grounded with three blades

  • Housing Material: Ribbed nylon housing

  • Cord Clamp: VARI-SIZE adjustable cord clamp fits cables from 0.230 in to 0.720 in diameter

  • Wire Accommodation: Accepts #18 AWG to #10 AWG stranded copper wire; back wired screw terminals

  • Operating Temperature Range: -40°F to +167°F (maximum continuous temperature of 75°C)

  • Dielectric Strength & Flammability: Withstands minimum of 2,000V; UL94 HB or better flammability rating

  • Corrosion resistant components; marine grade classification

  • Standards Compliance: CSA Certified C22.2 No.42 File 280, NEMA WD-6 Compliant, UL Listed to UL498 File E1706
