  11. Straight Blade Plug, 6-15P, 15 A, 250V AC, 2 Pole, Screw Terminals, Grounded

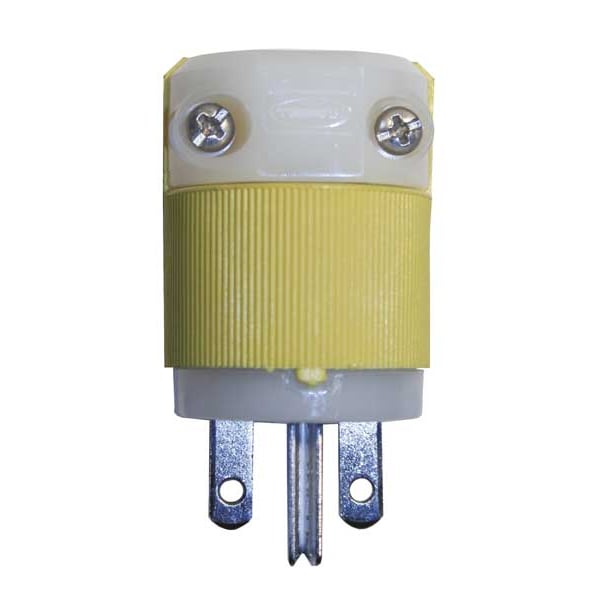

Hubbell Wiring Device-Kellems Straight Blade Plug, 6-15P, 15 A, 250V AC, 2 Pole, Screw Terminals, Grounded HBL56CM66C - main

Straight Blade Plug, 6-15P, 15 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL56CM66C

  • Zoro # G2217591

product price: $30.04
/ea

Key Features

NEMA Plug Configuration
6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL56CM66C
Zoro #
G2217591
UPC #
783585013398
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Outside Diameter
1.53 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Body Length
1.97 in
Height
1.53 in
Width
1.53 in
Dimensions
1.97 in x 1.53 in x 1.53 in
Wire Size
#18 AWG to #10 AWG
Length
1.97 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Corrosion Resistant
Yes
Grade - Plugs and Receptacles
Industrial
Number of Wires
3
Antimicrobial
No
Special Features
Corrosion resistant
NEMA Plug Configuration - Plugs and Receptacles
6-15P
Material
Nylon
HP
1.5
NEMA Configuration
6-15
Grade
Industrial
Phase - Plugs and Receptacles
1
Voltage
250VAC
NEMA Rating
WD-6; 6-15P
Insulation Material
Nylon
Horsepower Rating
1 1/2 hp
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
HB
Polarized
Yes
Housing Material
Nylon
Market
Commercial, Industrial
Body Style
Straight
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Retainer Material
Polycarbonate-Clear
Environment
Dry
Contact Blades Material
.060" (1.5) Brass
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact).
Blade Material
Solid Brass
Enhancement
Corrosion Resistance
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Body Material
Impact Modified Nylon
Weight (Lbs.)
0.15
Flammability
Rated HB or better UL94
Cord Clamp Material
Nylon-Natural
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Ground Contact Blade Material
.040" (1.0) Copper Alloy
Dielectric Strength
Withstands 2000V per UL498
Blade Holder Material
Nylon-Natural
Series
Insulgrip
Wattage
3750 W
Environmental Conditions
Ribbed Nylon Housing Is Impact and Chemical Resistant
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1.5
Style
Corrosion Resistant
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706

Description

• Ribbed nylon housing is impact and chemical resistant
• VARI-SIZE adjustable cord clamp
• Fast lead assembly screws
• Beveled housing prevents snagging
