Shop BRYANT

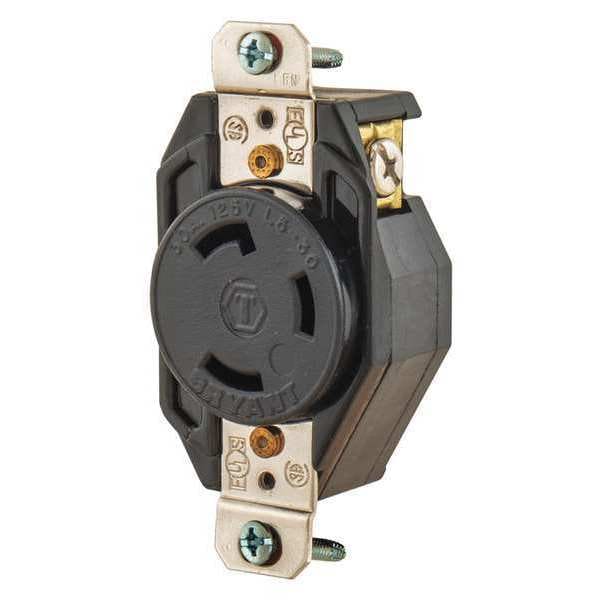

Locking Receptacle, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 70530FR

  • Zoro # G4439456

product price:
$
32.97
/ea

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
70530FR
Zoro #
G4439456
UPC #
781786688735
Country of Origin
United States
Item
Locking Receptacle
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
UL 498
Resistance Properties
Corrosion Resistant
Mounting Type
Flush Mount
Grade
Industrial
Material
Nylon
Wiring Style
Standard
Market
Industrial
For Location
Indoor
Horsepower Rating
2 hp
Includes Mounting Hardware
Yes
Polarized
Yes
For Environment
Dry
Contact Material
Copper Alloy
Housing Material
Nylon
Shrouded
No
Includes
Mounting Hardware
Material - Mounting Hardware
Screw Mounting
Amperage Rating
30 A
Features
Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
Series
Twist Lock
Application
Extra Heavy Duty Industrial Specification Grade
Amps
30
Midget Locking
No
IP Rating
Not Rated
Hub Type
Dead End
Number of Gangs
1
Connection Orientation
Straight
Number of Outlets
1
Flange Material
Composite
NEMA Enclosure Rating
Not Rated

Description

Locking Receptacle, Current Rating 30 A, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration L5-30R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Copper Alloy, Grade Industrial, Grounding Grounded
