  11. Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded

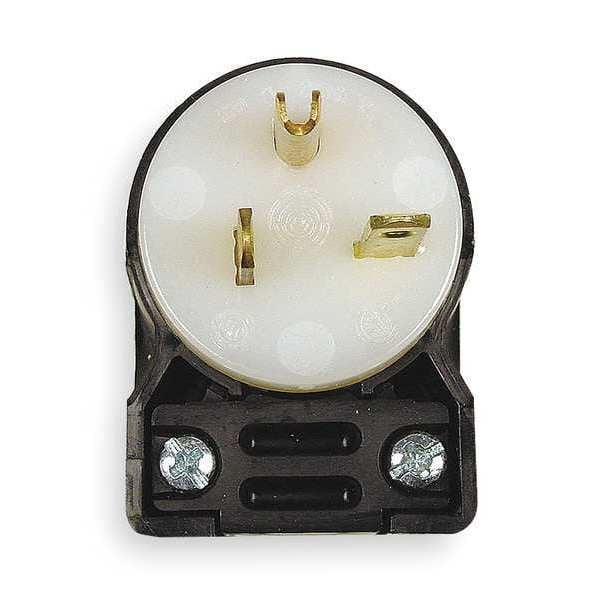

Hubbell Wiring Device-Kellems Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded HBL5466CA - main

Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5466CA

  • Zoro # G0344294

product price: $35.64
/ea

Key Features

NEMA Plug Configuration
6-20P
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5466CA
Zoro #
G0344294
UPC #
783585174754
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.325 in
Cord Size
0.325 in to 0.655 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Body Length
2.11 in
Dimensions
2.11 in x 1.53 in x 1.22 in
Height
1.22 in
Length
2.11 in
Wire Size
#18 AWG to #10 AWG
Width
1.53 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Grade - Plugs and Receptacles
Industrial
Grade
Industrial
Special Features
Corrosion resistant
Voltage
250VAC
Phase - Plugs and Receptacles
1
NEMA Plug Configuration - Plugs and Receptacles
6-20P
Corrosion Resistant
Yes
Number of Wires
3
HP
2.0
Material
Nylon
Antimicrobial
No
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
2 hp
Polarized
Yes
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Market
Commercial, Industrial
Housing Material
Nylon
Weight (Lbs.)
0.15
Flammability
Rated HB or better UL94
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Style
Angle
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Contact Blades Material
.060" (1.5) Brass
Dielectric Strength
Withstands 2000V per UL498
Retainer Material
Polycarbonate-Clear
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Cord Clamp Material
Nylon-Natural
Environment
Dry
Blade Material
Solid Brass
Body Material
Impact Modified Nylon
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact).
Blade Holder Material
Nylon-Natural
Ground Contact Blade Material
.040" (1.0) Copper Alloy
Horsepower - Maximum
2
Series
Insulgrip
Wattage
5000 W
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Cord Accomodation - .325"-.655"(8.3-16.6) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Style
Angled

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 20 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, White, IP Rating IP20, NEMA Plug Configuration 6-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.655 in, For Minimum Cable Diameter 0.325 in
