Plugs and Receptacles

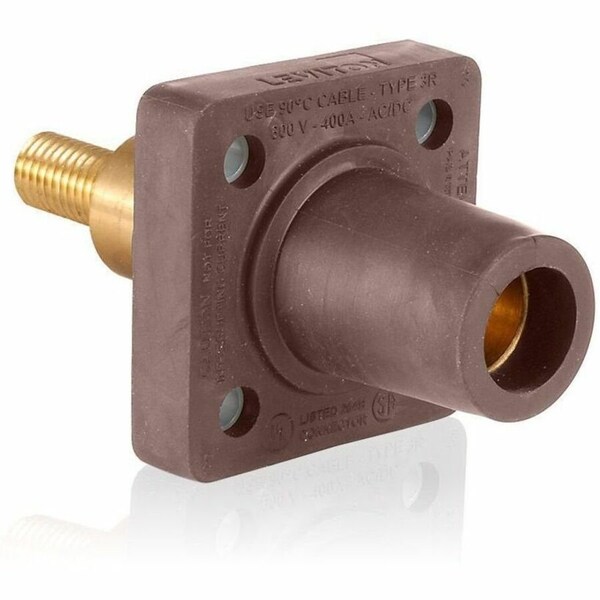

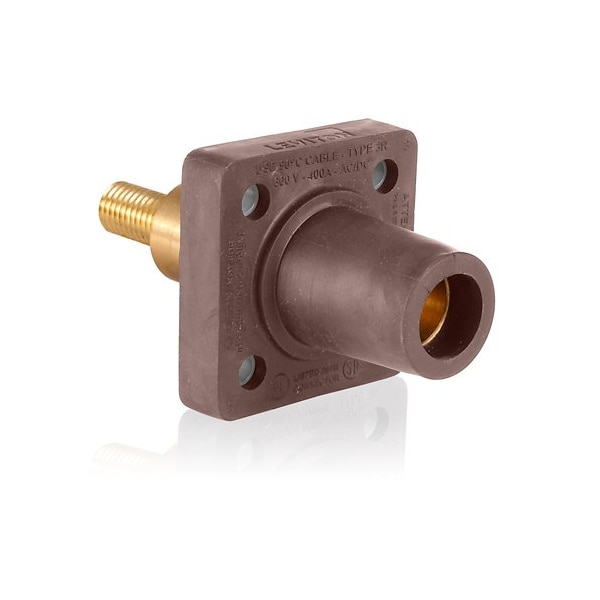

- Mfr # 16R32-XH
- Zoro # G822586550
product price:Â
$
47.39
/ea
Key Features
Gender
Female
Overall Width
2.28 in
Current Rating
400 A
Stud Thread Size
5/16"-18
Maximum Operating Temperature
185 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R32-XH
- Zoro #
- G822586550
- UPC #
- 78477939185
- Country of Origin
- Mexico
- Gender
- Female
- Current Rating
- 400 A
- Maximum Operating Temperature
- 185 Degrees F
- Terminal Connection Type
- Threaded Stud
- NEMA Enclosure Rating
- 3R
- Mounting Style
- Threaded Mounting
- Flange Shape
- Square
- Item
- Single Pole Receptacle
- Housing Color
- Brown
- Minimum Operating Temperature
- -40 Degrees F
- Connection Orientation
- Straight
- Voltage Rating
- 600V AC, 600V DC
- Housing Material
- Nylon
- Standards
- UL/CSA 1691
- End Type
- Taper Nose
- For Location
- Outdoor
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Series
- 16
Dimensions
- Overall Width
- 2.28 in
- Stud Thread Size
- 5/16"-18
- Flange Height
- 2.28 in
- Flange Width
- 2.28 in
- Maximum Wire Size
- 4/0 AWG
- Threaded Stud Termination Length
- 1.25 in
- Overall Length
- 2.07 in
- Minimum Wire Size
- 2 AWG
- Wire Rope Length
- 2.07 in
- Length
- 2.07 in
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Brown, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
