  11. Straight Blade Plug, 6-30P, 30 A, 250V AC, 2 Pole, Screw Terminals, Grounded

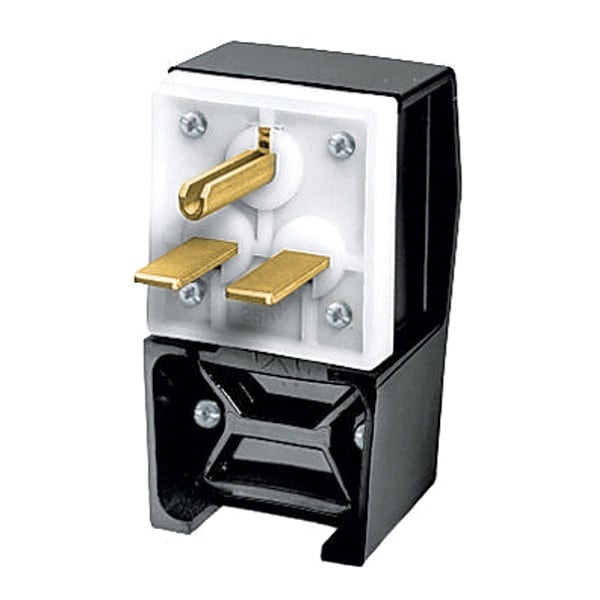

Hubbell Wiring Device-Kellems Straight Blade Plug, 6-30P, 30 A, 250V AC, 2 Pole, Screw Terminals, Grounded HBL9331 - main

Straight Blade Plug, 6-30P, 30 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL9331

  • Zoro # G1316612

product price: $85.73
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9331
Zoro #
G1316612
UPC #
783585015248
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.187 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.187 in
Maximum Wire Size
4 AWG
Minimum Wire Size
12 AWG
Body Length
4.34 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Special Features
Corrosion resistant
Number of Wires
3
NEMA Plug Configuration - Plugs and Receptacles
6-30P
Voltage
250VAC
Grade - Plugs and Receptacles
Industrial
Material
Nylon
Grade
Industrial
HP
2.0
Antimicrobial
No
Corrosion Resistant
Yes
Phase - Plugs and Receptacles
1
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Insulation Material
Nylon
Horsepower Rating
2 hp
Market
Commercial, Industrial
Polarized
Yes
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Flammability
Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer).
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Screw Material
Plated Steel
Weight (Lbs.)
0.55
Dielectric Strength
Withstands 2,000V minimum
Blade Holder Material
Reinforced Thermoplastic Polyester
Ground Contact Blade Material
.078" Brass (.078")
Terminal Screw Material
Steel - Zn plated
Box Terminals Material
Brass
Body Style
Angle
Retainer Material
Reinforced Thermoplastic Polyester
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Cord Clamp Material
Reinforced Thermoplastic Polyester
Contact Blades Material
.060" Brass

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 30 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 6-30P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating V-2, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.187 in, For Minimum Cable Diameter 0.625 in
