  11. Straight Blade Plug, 6-50P, 50 A, 250V AC, 2 Pole, Screw Terminals, Grounded

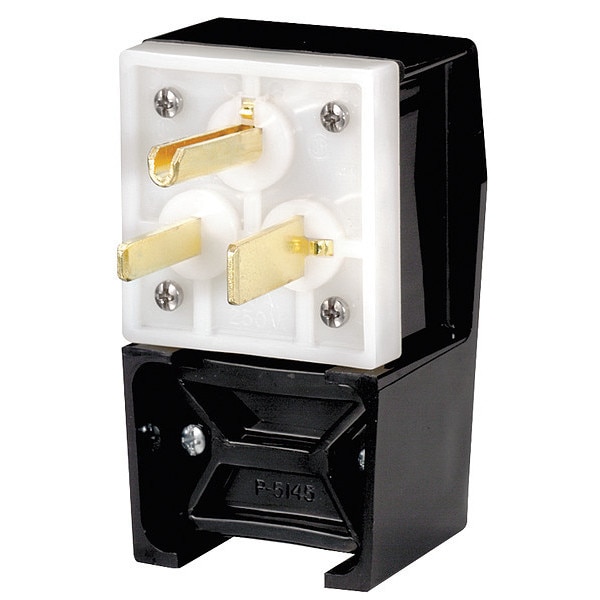

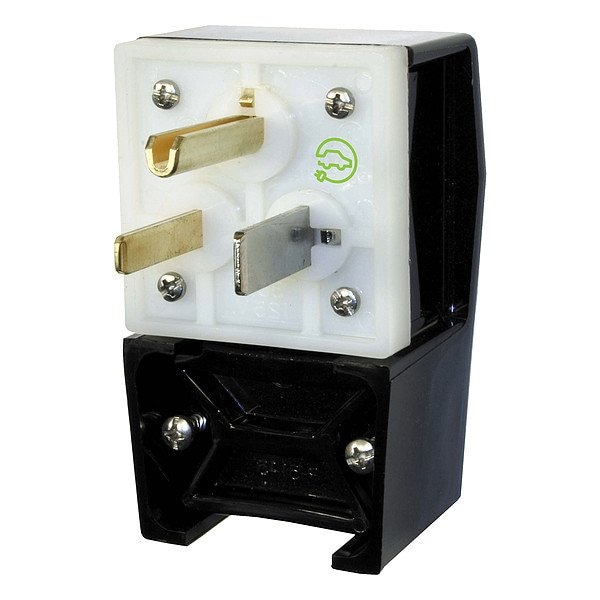

Hubbell Wiring Device-Kellems Straight Blade Plug, 6-50P, 50 A, 250V AC, 2 Pole, Screw Terminals, Grounded HBL9368 - main

Straight Blade Plug, 6-50P, 50 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL9368

  • Zoro # G2676667

product price: $89.17
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9368
Zoro #
G2676667
UPC #
783585015286
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.187 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.187 in
Body Length
4.34 in
Height
1.88 in
Dimensions
4.34 in x 2.75 in x 1.88 in
Length
4.34 in
Width
2.75 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
6-50P
Current Rating
50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Number of Wires
3
Corrosion Resistant
Yes
Special Features
Corrosion resistant
Grade - Plugs and Receptacles
Industrial
Voltage
250VAC
NEMA Configuration
6-50
Antimicrobial
No
HP
3.0
NEMA Plug Configuration - Plugs and Receptacles
6-50P
Grade
Industrial
Material
Nylon
Phase - Plugs and Receptacles
1
NEMA Rating
6-50P
Insulation Material
Nylon
Horsepower Rating
3 hp
Maximum Operating Temperature
167 Degrees F
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Housing Material
Nylon
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Contact Blades Material
.060" Brass
Box Terminals Material
Brass
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Body Style
Angle
Flammability
UL 94 HB or better.
Blade Holder Material
Reinforced Thermoplastic Polyester
Terminal Screw Material
Steel - Zn plated
Retainer Material
Reinforced Thermoplastic Polyester
Ground Contact Blade Material
.078" Brass (.078")
Dielectric Strength
Withstands 2,000V minimum
Ground Screw Material
Plated Steel
Weight (Lbs.)
0.55
Cord Clamp Material
Reinforced Thermoplastic Polyester
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
3
Cord Range
0.625"-1.187"
Industry Standard(s)
UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

The HUBBELL 3 Wire Industrial Angle Straight Blade Plug is an electrical plug rated for use in commercial and industrial settings with specified capacity. This angle straight blade plug features an angled body style intended to assist installation in limited space environments. It supports single-phase power delivery at 250VAC with a maximum current rating of 50A.


Key Features of the HUBBELL 3 Wire Industrial Angle Straight Blade Plug:

  • Electrical Rating: Rated for 50A and 250V AC, compatible with NEMA 6-50P configuration.

  • Construction: Housing made from industrial-grade nylon; reinforced thermoplastic polyester used for blade holder, cord clamp, and retainer components.

  • Cord Accommodation: Accepts cord diameters from 0.625" to 1.187".

  • Connection Orientation: Angled design allows for installation in limited space environments.

  • Terminals & Contacts: Brass contact blades and box terminals; steel terminal screws (zinc plated); grounded via .078" brass ground contact blade and plated steel ground screw.

  • Resistance Properties: Constructed from corrosion-resistant materials as specified by the manufacturer.

  • Standards Compliance: UL Listed to UL498 File E1706; CSA Certified C22.2 No.42 File 280.

  • Operating Temperature Range: Suitable for use between -40°F to +167°F (maximum continuous temperature up to 75°C).
