  11. Straight Blade Plug, 7-15P, 15 A, 277V AC, 2 Pole, Screw Terminals, Grounded

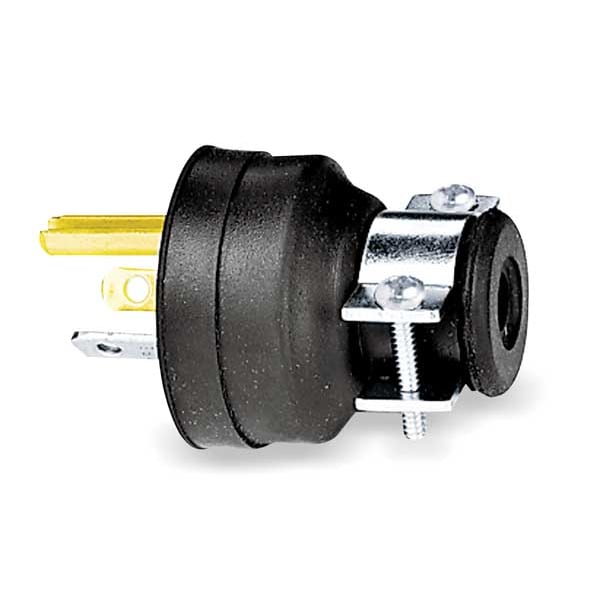

Hubbell Wiring Device-Kellems Straight Blade Plug, 7-15P, 15 A, 277V AC, 2 Pole, Screw Terminals, Grounded HBL5929 - main

Straight Blade Plug, 7-15P, 15 A, 277V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL5929

  • Zoro # G3332831

product price: $31.25
/ea

Key Features

NEMA Plug Configuration
7-15P
Current Rating
15 A
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5929
Zoro #
G3332831
UPC #
783585013251
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.43 in
For Minimum Cable Diameter
0.31 in
Cord Size
0.312 in to 0.468 in
Maximum Wire Size
12 AWG
Overall Length
1.63 in
Minimum Wire Size
18 AWG
Outside Diameter
1.5 in
Wire Size
#18 AWG to #12 AWG
Length
1.63 in
Width
1.5 in
Height
1.5 in
Dimensions
1.63 in x 1.5 in x 1.5 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
7-15P
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2
Resistance Properties
Corrosion Resistant
Grade - Plugs and Receptacles
Industrial
Number of Wires
3
NEMA Plug Configuration - Plugs and Receptacles
7-15P
Material
Insulprene
HP
2.0
Voltage
277VAC
Special Features
Corrosion resistant
Corrosion Resistant
Yes
Phase - Plugs and Receptacles
1
Grade
Industrial
Antimicrobial
No
Insulation Material
Insulpreme
Market
Commercial, Industrial
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Housing Material
Insulprene
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
HB
Weight (Lbs.)
0.15
Body Style
Straight
Flammability
Rated HB or better UL94
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Contact Blades Material
.060" (1.5) Brass
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Environment
Dry
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Blade Holder Material
Nylon
Body Material
Impact Modified Nylon
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact)
Blade Material
Solid Brass
Ground Contact Blade Material
.040" (1.0) Brass
Dielectric Strength
Withstands 2000V per UL498
Wattage
4155 W
Series
Industrial Grade
Style
Finger Grip
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
2
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Cord Accomodation - .310"-.430"(7.9-11.9) Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 7-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.43 in, For Minimum Cable Diameter 0.31 in
