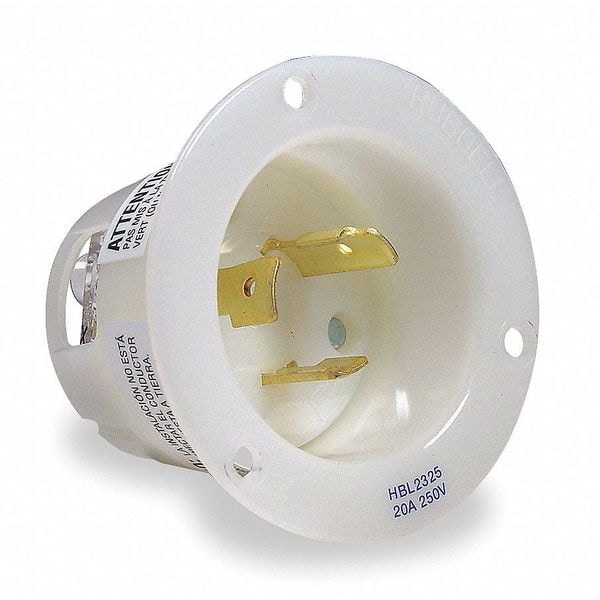

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White HBL2325 - main

Flanged Locking Inlet, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2325

  • Zoro # G3112015

product price:  $28.29
/ea

Key Features

NEMA Receptacle Configuration
L6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL2325
Zoro #
G3112015
UPC #
783585037868
Country of Origin
United States

Dimensions

Face Plate Width
0.07 in
Minimum Wire Size
16 AWG
Face Diameter
2.04 in
Overall Depth
2.09 in
Flange Diameter
2.88 in
Maximum Wire Size
8 AWG
Wire Size
#12 AWG
Dimensions
2.88 in x 2.88 in x 2.09 in
Length
2.88 in
Height
2.09 in
Width
2.88 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Special Features
With Cover
Wiring Style
Standard
Mounting Type
Flush Mount
Grade
General Use
IP Rating
IP44
Material
Thermoplastic Elastomer
Boot Code
E
Housing Material
Nylon
NEMA Plug Configuration
L6-20P
Number of Blades
3
Horsepower Rating
2 hp
Connection Orientation
Straight
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Flange Material
Steel
Blade Material
Brass
Includes Mounting Hardware
Yes
For Environment
Dry
Market
Industrial
Includes
Mounting Screws
NEMA Enclosure Rating
12, 4, 4X
Shrouded
No
Maximum Operating Temperature
167 Degrees F
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Lock Type
Twist-lock
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Extra Heavy Duty Industrial
Insulation
Insulated Body
Material - Mounting Hardware
Screw Mounting
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Dielectric Strength
Withstands 2,000V minimum
NEMA Rating
12, 4, 4X
NEMA Configuration
L6-20
Amps
20

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
