  11. Straight Blade Plug, Non-NEMA, 20/16 A, 250V AC, 2 Pole, Screw Terminals, Grounded

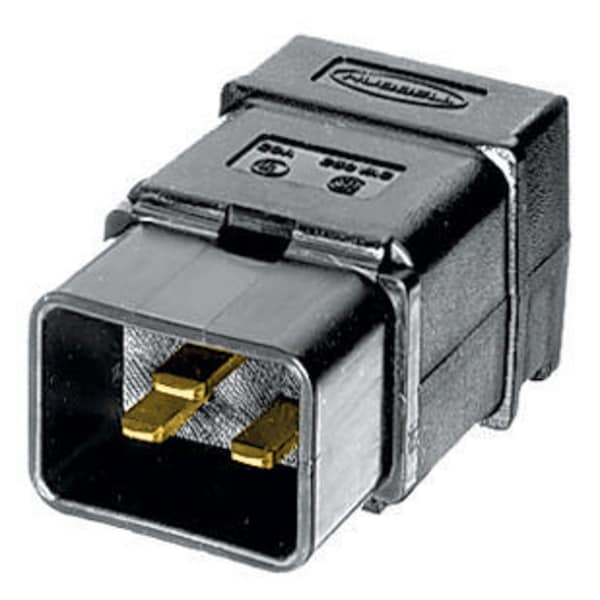

Hubbell Wiring Device-Kellems Straight Blade Plug, Non-NEMA, 20/16 A, 250V AC, 2 Pole, Screw Terminals, Grounded H320P - main

Straight Blade Plug, Non-NEMA, 20/16 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # H320P

  • Zoro # G900702483

product price: $16.25
/ea

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
20/16 A
Voltage Rating
250V AC
Number of Poles
2
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H320P
Zoro #
G900702483
UPC #
783585777061
Country of Origin
United States

Dimensions

Cord Size
.325"-.475" (8-12); .325" - .475" (8.0-12.0)
Height
1.36 in
Width
1.52 in
Length
2.75 in
Wire Size
North American-#16AWG-#12AWG; International-1.55mm²-2.5mm².
Display Size
Standard Sized Product
Dimensions
2.75 in x 1.52 in x 1.36 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
20/16 A
Voltage Rating
250V AC
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
IEC 320, UL Listed 20A 250V AC-File No. E1706, CSA certified 20A 250V AC-File No. 17337, UL classified to IEC 320, 16A 250V AC-File No. E111246, TUV and VDE certified at 16A 250V AC-File No. 12469 1550 1002.
Special Features
Certified for current interrupting at full rated current.
Color
Black
Nema Rating
Non-NEMA
Contact Blades Material
.040" (1.0) Brass
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Ground Screw Material
Steel
Flammability
UL 94 HB or better
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Wattage
7500 W
Dielectric Strength
Withstands 2,000V minimum
Amperage
20/16 A
Number Of Wires
3-Wire
Carton Quantity
10
Base Material
Nylon
Retainer Material
Nylon-Black
Terminal Screw Material
Steel
Connectivity
Screw Terminals
Weight (Lbs.)
0.15
Housing Material
Nylon-Black
Brand
Hubbell Wiring Device-Kellems
IEC Product
Plug
Cord Clamp Material
Nylon-Black
OEM Brand Name
Hubbell Wiring Device-Kellems
Wiring Method
Terminal Screw
Power Contacts Material
.032" (.81) Brass
Phase
Single

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, IEC 320 Devices,Male Plug, 16A 250V, International Rated, Pressure Screw Terminal,Black, Single Pack
