  11. Straight Blade Receptacle, 10-30R, 30 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Grounded

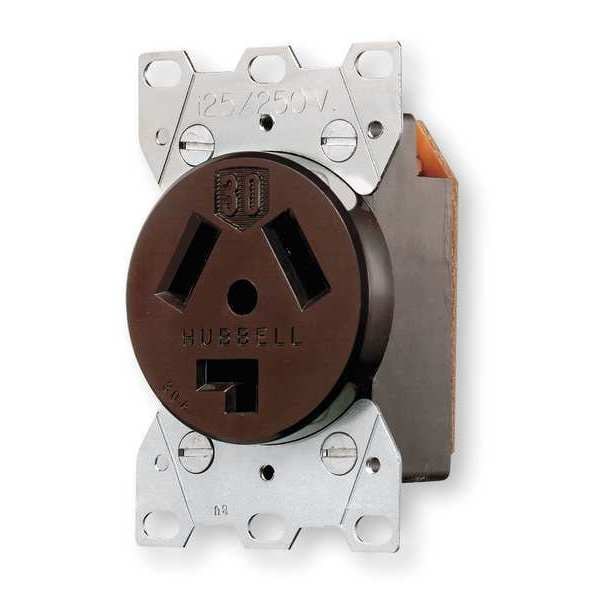

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 10-30R, 30 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Grounded HBL9350 - main

Straight Blade Receptacle, 10-30R, 30 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL9350

  • Zoro # G2589876

product price: $30.65
/ea

Key Features

Receptacle Type
Single
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9350
Zoro #
G2589876
UPC #
783585015255
Country of Origin
United States

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
10-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, UL Listed
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Corrosion Resistant
No
Voltage
125/250VAC
Weather Resistant
No
Tamper Resistant
No
Application Environment
Industrial
Boot Code
C
Material
Phenolic
Sub-Category
Single Receptacles
HP
2 hp
Number of Gangs
1
Surge Suppression
No
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Single
NEMA Receptacle Configuration - Plugs and Receptacles
10-30R
Market
Industrial
Shrouded
No
Housing Material
Phenolic
Polarized
Yes
Horsepower Rating
2 hp
AFCI
No
NEMA Enclosure Rating
1
GFCI
No
Surge Protection
No
Connection Orientation
Straight
Grade
Federal Specification
Cover Type
No Cover
Rating
30A, 125/250V
Receptacle Grade
Heavy Duty Spec Grade
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Base Material
Phenolic
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Screw Material
3/8" Allen Head, Plated Steel
Current Interrupting
Certified for current interrupting at full rated current
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Box Terminals Material
Copper
Power Contacts Material
.075" (1.9) Brass
Mounting Strap Material
.040" (1) Plated Steel
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Top Material
Phenolic
Certification
UL Listed, File E2186, Listed to UL Standard 498
Poles and Wires
3 Pole, 3-Wire Non-Grounding
Dielectric Voltage
Withstands 2,000V minimum
Flammability
UL 94 V0., UL 94 V-1 or better
Receptacle Style
Single
IP Suitability
IP20
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Device Color
Black
Horsepower
2(2)
Face Shape
Traditional
Face Style
Finder Groove

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Phenolic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 10-30R, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified, UL Listed, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No
