Shop HUBBELL WIRING DEVICE-KELLEMS

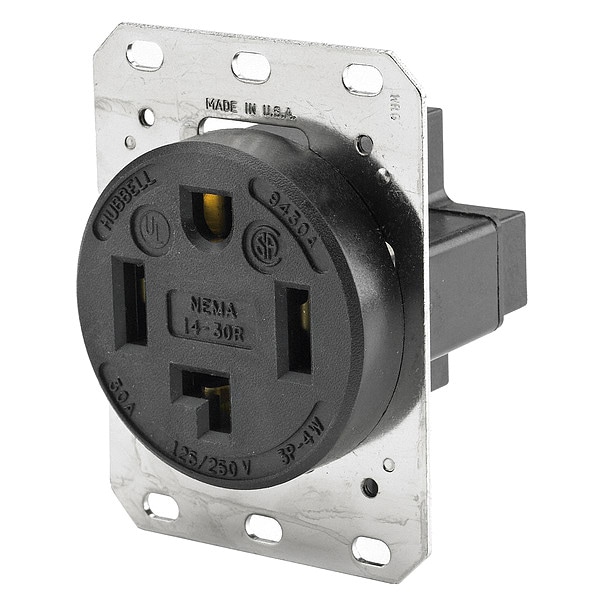

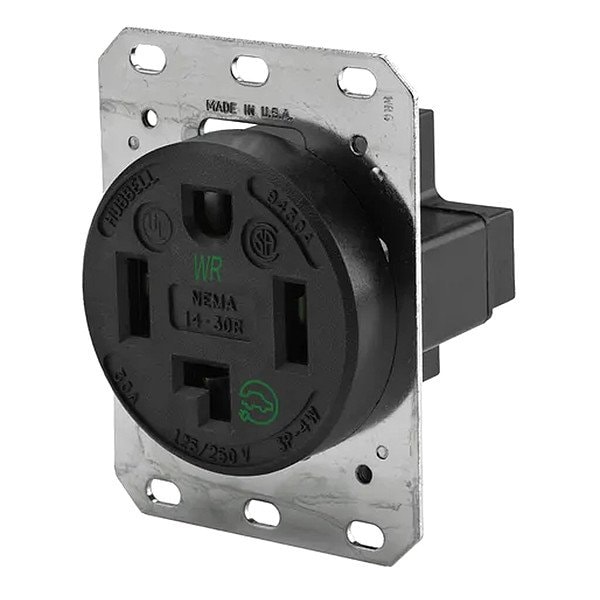

Straight Blade Receptacle, 14-30R, 30 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # HBL9430A

  • Zoro # G1483946

product price:
$
99.99
/ea

Key Features

Receptacle Type
Single
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL9430A
Zoro #
G1483946
UPC #
783585015293
Country of Origin
United States
Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA, Fed Spec, UL
Flange Type
Non-Flanged
Mounting Type
Flush
Outlet Type
Single
Material
Thermoplastic Polyester
Corrosion Resistant
No
Boot Code
D
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
14-30R
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Weather Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125/250VAC
HP
2 hp
Outlet Type - Plugs and Receptacles
Single
Tamper Resistant
No
Surge Suppression
No
Application Environment
Industrial
Sub-Category
Single Receptacles
Power Indicator
No
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
For Location
Indoor
Horsepower Rating
2 hp
Contact Material
Brass
GFCI
No
UL 94 Flammability Rating
V-0
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
AFCI
No
Polarized
Yes
Grade
EV
NEMA Enclosure Rating
1
Housing Material
Reinforced Thermoplastic Polyester
Market
Industrial
Certification
UL, CSA, Fed Spec
Terminal Screw Material
3/8" Allen Head, Plated Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Horsepower
2(2)
Base Material
Glass Reinforced PET
Ground Screw Material
3/8" Allen Head, Plated Steel
Mounting Screw Material
Steel-Zinc Plated
Top Material
Glass Reinforced PET
Receptacle Grade
Heavy Duty Spec Grade
Flammability
UL 94 V0.
Mounting Strap Material
.062" (1.5) Plated Steel
Power Contacts Material
.040" (1.0) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Standard
NEMA
Rating
30A, 125/250V
Face Shape
Traditional
Poles and Wires
3 Pole, 4 Wire Grounding
Face Style
Finder Groove
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Current Interrupting
Certified for current interrupting at full rated current
Box Terminals Material
Copper
IP Suitability
IP20
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Black
Receptacle Style
Single
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
2
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
14-30R
Application
Heavy Duty
Wattage
7500 W
Industry Standard(s)
Certified to CSA NEMA® WD-6 Compliant UL Listed File E2186
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

• Tailored for EV Charging: This receptacle is purpose-built to cater to the specific needs of EV charging. It incorporates features and specifications that are optimized for the safe and efficient charging of electric vehicles.
• Industrial-Grade Construction: This EV receptacle boasts a robust and durable construction. It is engineered using high quality materials that can withstand demanding environments, ensuring long-lasting performance and reliability.
• Secure Connection: Terminal box shields against loose wires and external damage with a durable enclosure. Features a clamping mechanism for tight, efficient wire termination, reducing power loss or overheating risks.
• Contact Force & Durability: Thick wall terminal box offers 50% greater contact force for secure connections, minimizing power interruptions. Designed for heavy use, it withstands frequent insertions and removals, ensuring lasting performance.
• Fast & Efficient Charging: Features a 3-pole, 4-wire grounding for secure EV charging, minimizing electrical faults. With a 50A, 125/250V rating, it ensures high-power, faster charging times, promoting safety and efficiency.
• Effortless Installation: This EV Charging Receptacle is designed for easy setup, featuring a straightforward wiring mechanism suitable for both professional electricians and DIY enthusiasts, ensuring a hassle-free installation process.
