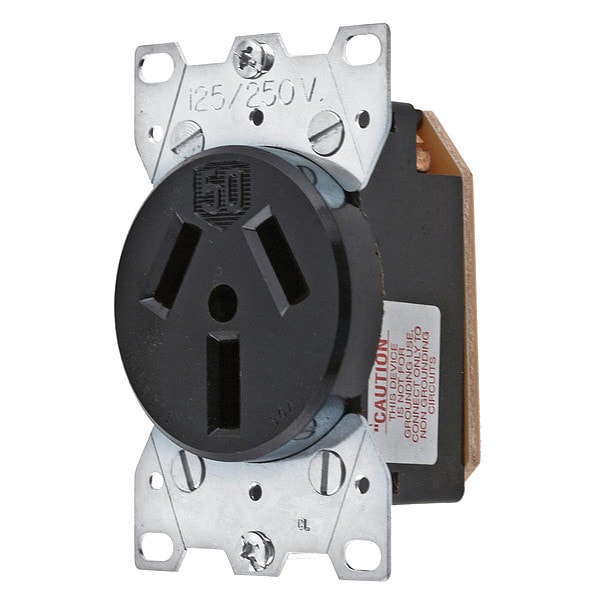

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 10-50R, 50 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded HBL7962 - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 10-50R, 50 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded

  • Mfr # HBL7962

  • Zoro # G0281784

product price:  $37.59
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
10-50R
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7962
Zoro #
G0281784
UPC #
783585015125
Country of Origin
United States

Dimensions

Width
1.69 in
Maximum Wire Size
4 AWG
Mount Hole Center-to-Center Height
3.2 in
Mount Hole Center-to-Center Width
1.7 in
Overall Depth
1.3 in
Face Diameter
2.1 in
Minimum Wire Size
12 AWG
Length
2.5 in
Wire Size
#12 AWG to #4 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
10-50R
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL E2186
Flange Type
Non-Flanged
Tamper Resistant
No
Mounting Type
Flush
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
10-50R
NEMA Configuration
10-50
Application Environment
Industrial
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Single Receptacles
Boot Code
C
HP
3 hp
Surge Suppression
No
Material
Phenolic
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
Outlet Type
Single
Power Indicator
No
Outlet Type - Plugs and Receptacles
Single
Voltage
125/250VAC
Mounting Type - Plugs and Receptacles
Flush
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
GFCI
No
Grade
Federal Specification
Market
Industrial
UL 94 Flammability Rating
V-0
Cover Type
No Cover
Connection Orientation
Straight
NEMA Enclosure Rating
1
Horsepower Rating
3 hp
Housing Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
Shrouded
No
AFCI
No
Surge Protection
No
For Location
Indoor
Flammability
UL 94 V0.
Device Color
Black
Terminal Screw Material
3/8" Allen Head, Plated Steel
Receptacle Style
Single
Face Shape
Traditional
Current Interrupting
Certified for current interrupting at full rated current
Standard
NEMA
Horsepower
3(2)
Dielectric Voltage
Withstands 2,000V minimum
Face Style
Finder Groove
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Screw Material
Steel-Zinc Plated
Receptacle Grade
Heavy Duty Spec Grade
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.075" (1.9) Brass
Top Material
Phenolic
Certification
UL Listed, File E2186, Listed to UL Standard 498
Rating
50A, 125/250V
Mounting Strap Material
.040" (1) Plated Steel
Box Terminals Material
Copper
Poles and Wires
3 Pole, 3-Wire Non-Grounding
Base Material
Phenolic
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
IP Suitability
IP20
Terminal Accommodation
#12 AWG through #4 AWG copper wire only
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
3
Industry Standard(s)
CSA Certified NEMA® WD-6 Compliant UL Listed File E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Nema Rating
10-50R
Cord Range
0.625"-1.187"
Material - Mounting Hardware
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
12500 W

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Non-Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 10-50R, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified, NEMA WD-6, UL E2186, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
