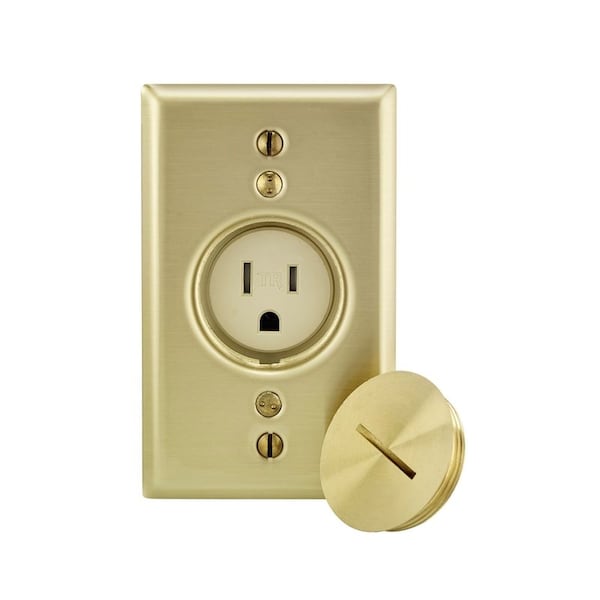

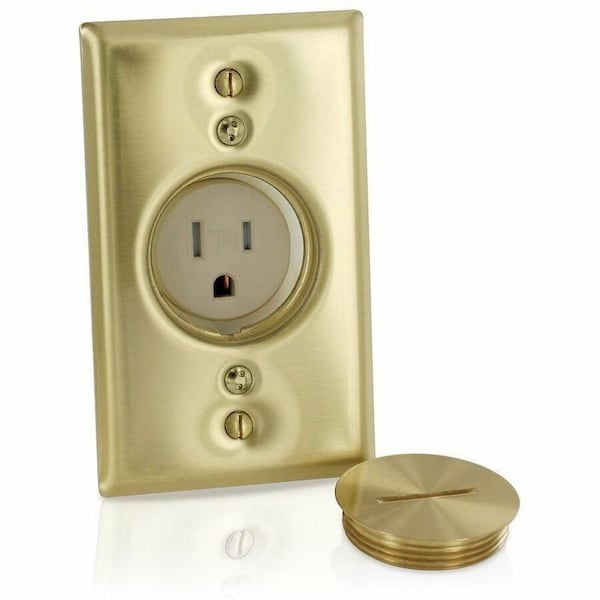

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded

  • Mfr # T5250-B

  • Zoro # G803457442

product price:  $40.25
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T5250-B
Zoro #
G803457442
UPC #
78477703496
Country of Origin
Mexico

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498, UL514A
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Face Material
Nylon
Mounting Screws
Steel
Termination
Back & Side
Terminal Accom.
14-10 AWG
Operating Temperature
-40°C to 75°C
Certification/Listing
cCSAus, NOM-ANCE
ANSI
C-73
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Body Material
Nylon
Strap Material
Zinc-Plated Steel
Line Contacts
Brass Triple-Wipe
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Applicable Standards
UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
At Rated Voltage
1/2 HP
Cap Material
Brass
Wallplate
Solid Brass 0.060 In Thick
Wire
3
Grounding Screw
Steel
Feature
Tamper-Resistant

Description

Leviton's line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc. These commercial-grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.


  • • Steel mounting and grounding screws
  • • Quick installation simply wire and mount to a standard 1-gang box
  • • Brass plate and screw cap resist abuse and prevent foreign contaminants from entering device
  • • Long lasting
  • • Tamper-resistant receptacle meets NEC article 406.12 requirements
  • •
